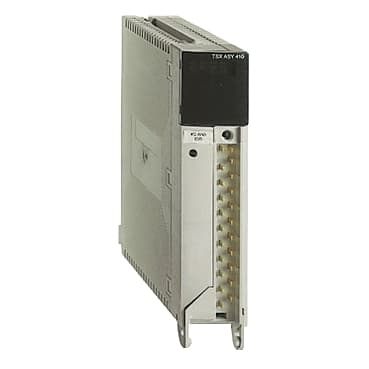

Product Model
TSXAEY414C
Selling Points
- 1Precise 16-bit Analog-to-Digital Conversion: Ensures accurate conversion of analog signals into digital data.
- 2Supports Multiple Analog Inputs: Accommodates current, resistors, temperature probes, thermocouples, and voltage inputs.
- 3Robust Isolation: Provides isolation between channels and the bus at 2830 Vrms, ensuring electrical safety and preventing interference.
- 4Fast Data Acquisition: Offers a nominal read cycle time of 550 ms for efficient data acquisition.
- 5High Measurement Accuracy: Delivers measurement errors ranging from 0.13% to 1.2% of full scale, depending on input type and temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Analog input module |
Input level | Low level | Analogue input number | 4 |
Analogue input type | Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V<br />Thermocouple thermocouple B<br />Thermocouple thermocouple E<br />Thermocouple thermocouple J<br />Thermocouple thermocouple K<br />Thermocouple thermocouple L<br />Thermocouple thermocouple N<br />Thermocouple thermocouple R<br />Thermocouple thermocouple S<br />Thermocouple thermocouple T<br />Thermocouple thermocouple U<br />Resistor 0...3850 Ohm<br />Resistor 0...400 Ohm<br />Temperature probe Ni 1000 2 wires<br />Temperature probe Ni 1000 4 wires<br />Temperature probe Pt 100 2 wires<br />Temperature probe Pt 100 4 wires<br />Temperature probe Pt 1000 2 wires<br />Temperature probe Pt 1000 4 wires<br />Voltage - 13...63 mV<br />Voltage +/- 5 V | Analog/digital conversion | 16 bits |
Nominal read cycle time | 550 ms | Measurement error | 0.13 % of full scale 0...400 Ohm 25 °C<br />0.16 % of full scale 0...10 V 25 °C<br />0.19 % of full scale - 13...63 mV 25 °C<br />0.22 % of full scale 0...3850 Ohm 25 °C<br />0.22 % of full scale 0...5 V 25 °C<br />0.27 % of full scale +/- 10 V 25 °C<br />0.27 % of full scale +/- 5 V 25 °C<br />0.27 % of full scale 0...400 Ohm 0...60 °C<br />0.27 % of full scale 1...5 V 25 °C<br />0.39 % of full scale 0...10 V 0...60 °C<br />0.44 % of full scale - 13...63 mV 0...60 °C<br />0.45 % of full scale 0...5 V 0...60 °C<br />0.45 % of full scale 4...20 mA 25 °C<br />0.48 % of full scale 0...3850 Ohm 0...60 °C<br />0.5 % of full scale +/- 10 V 0...60 °C<br />0.5 % of full scale +/- 5 V 0...60 °C<br />0.56 % of full scale 1...5 V 0...60 °C<br />0.86 % of full scale 4...20 mA 0...60 °C<br />1.5 °C thermocouple B external 25 °C<br />1.5 °C thermocouple E external 25 °C<br />1.5 °C thermocouple T external 25 °C<br />1.5 °C thermocouple U external 25 °C<br />1.8 °C thermocouple J external 25 °C<br />10.5 °C thermocouple K internal 0...60 °C<br />11 °C thermocouple R internal 0...60 °C<br />12 °C thermocouple S internal 0...60 °C<br />2 °C thermocouple L external 25 °C<br />2 °C thermocouple N external 25 °C<br />2.3 °C thermocouple K external 25 °C<br />3.1 °C thermocouple U external 0...60 °C<br />3.2 °C thermocouple E external 0...60 °C<br />3.2 °C thermocouple R external 25 °C<br />3.2 °C thermocouple T external 0...60 °C<br />3.4 °C thermocouple S external 25 °C<br />3.5 °C thermocouple B external 0...60 °C<br />3.5 °C thermocouple B internal 25 °C<br />3.8 °C thermocouple J external 0...60 °C<br />4.1 °C thermocouple L external 0...60 °C<br />4.3 °C thermocouple N external 0...60 °C<br />4.7 °C thermocouple K external 0...60 °C<br />5.4 °C thermocouple U internal 25 °C<br />6 °C thermocouple N internal 25 °C<br />6 °C thermocouple R internal 25 °C<br />6.1 °C thermocouple E internal 25 °C<br />6.6 °C thermocouple S internal 25 °C<br />6.6 °C thermocouple T internal 25 °C<br />7.3 °C thermocouple J internal 25 °C<br />7.3 °C thermocouple U internal 0...60 °C<br />7.5 °C thermocouple L internal 25 °C<br />7.7 °C thermocouple R external 0...60 °C<br />7.8 °C thermocouple K internal 25 °C<br />8.1 °C thermocouple B internal 0...60 °C<br />8.1 °C thermocouple E internal 0...60 °C<br />8.5 °C thermocouple S external 0...60 °C<br />8.7 °C thermocouple N internal 0...60 °C<br />8.8 °C thermocouple T internal 0...60 °C<br />9.5 °C thermocouple J internal 0...60 °C<br />9.8 °C thermocouple L internal 0...60 °C<br />1 °C Ni 1000 25 °C<br />1.2 °C Pt 100 25 °C<br />2 °C Ni 1000 0...60 °C<br />2.4 °C Pt 100 0...60 °C<br />2.5 °C Pt 1000 25 °C<br />5 °C Pt 1000 0...60 °C |
Isolation between channels and bus | 1780 Vrms | Isolation between channels and ground | 1780 Vrms |
Isolation between channels | 2830 Vrms | Common mode between channels | 415 V AC or 200 V DC |
Common mode between channels and earth | 240 V AC or 110 V DC | Input overvoltage protection | -15…15 V at state 0 250 Ohm<br />-30…30 V at state 1 250 Ohm |
Electrical connection | Screw terminal block | Overcurrent | -25…25 mA at state 1 250 kOhm |
marking | CE | Current consumption | 660 mA 5 V DC |
Module format | Standard | Net Weight | 0.71 lb(US) (0.32 kg) |
Standards | DIN 43710<br />NFC 42-330<br />IEC 1131<br />DIN 43760<br />IEC 584<br />IEC 751 | Product Certifications | DNV<br />RINA<br />LR<br />RMRS<br />BV<br />GL<br />ABS |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | Conformal coating Humiseal 1A33<br />TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
