Product Model

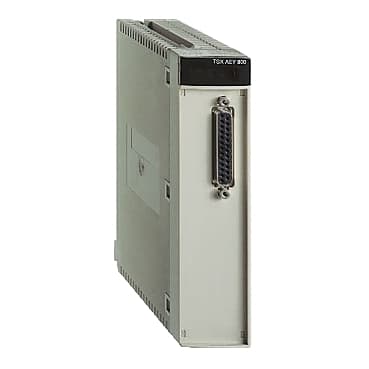

TSXAEY800C
Selling Points
- 1High Accuracy & Reliability: The TSXAEY800C offers 12-bit analog-to-digital conversion for precise data acquisition.
- 2Multi-Range Inputs: Supports various input types including current (0...20 mA, 4...20 mA) and voltage (+/- 10 V, 0...10 V, 0...5 V, 1...5 V).
- 3Robust Isolation: Provides 1000 Vrms isolation between channels and bus, ensuring safe and reliable operation.
- 4Compact Design: Weighs only 0.31 kg, making it easy to integrate into your industrial setup.
- 5Long-Lasting Performance: Operates within a wide ambient air temperature range of 0...60 °C, ensuring stable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Analog input module |
Input level | High level | Analogue input number | 8 |
Analogue input type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V | Analog/digital conversion | 12 bits |
Nominal read cycle time | 27 ms | Fast read cycle time | 3 ms + 3 ms x number of channels used |
Measurement error | 0.15 % of full scale 0...5 V 25 °C<br />0.15 % of full scale 1...5 V 25 °C<br />0.19 % of full scale +/- 10 V 25 °C<br />0.19 % of full scale 0...10 V 25 °C<br />0.22 % of full scale +/- 10 V 0...60 °C<br />0.22 % of full scale 0...10 V 0...60 °C<br />0.22 % of full scale 0...5 V 0...60 °C<br />0.22 % of full scale 1...5 V 0...60 °C<br />0.25 % of full scale 0...20 mA 25 °C<br />0.25 % of full scale 4...20 mA 25 °C<br />0.41 % of full scale 0...20 mA 0...60 °C<br />0.41 % of full scale 4...20 mA 0...60 °C | Isolation between channels and bus | 1000 Vrms |
Isolation between channels and ground | 1000 Vrms | Isolation between channels | Common point |
Common mode between channels | None | Input overvoltage protection | -15…15 V at state 0 250 Ohm<br />-30…30 V at state 1 250 Ohm |
Electrical connection | 1 connector SUB-D 25 | Overcurrent | -30…30 mA at state 1 250 kOhm |
marking | CE | Current consumption | 270 mA 5 V DC |
Module format | Standard | Net Weight | 0.68 lb(US) (0.31 kg) |
Standards | IEC 1131 | Product Certifications | RINA<br />ABS<br />BV<br />RMRS<br />DNV<br />LR<br />GL |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | Conformal coating Humiseal 1A33<br />TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
