Product Model

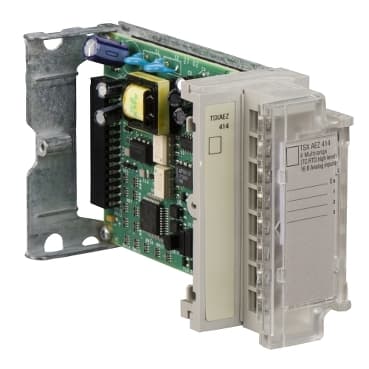

TSXAEZ414
Selling Points
- 1The TSXAEZ414 features 4 high-level temperature probe or thermocouple analog inputs with 16-bit resolution for precise temperature monitoring.
- 2Designed for backplane or rack mounting, this module is compact and versatile for various industrial automation systems.
- 3With a current consumption of 85mA, the TSXAEZ414 is energy-efficient and suitable for a wide range of applications.
- 4Built with high-quality components, this module ensures reliable performance in demanding industrial environments.
- 5Compatible with the Modicon TSX Micro I/O modules sub-range, making it easy to integrate into existing automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Analog input module |
Number of channels | 4 | Analogue Input Type | High level<br />Temperature probe<br />Thermocouple |
Analog/digital conversion | 16 bits | Acquisition period | 520 ms |
Temperature drift | 0.08 %/10 °C voltage circuit<br />0.01 %/10 °C current circuit | Input impedance | 10 Ohm |
current consumption | 85 mA | Isolation voltage | 500 V AC |
Net Weight | 0.46 lb(US) (0.21 kg) |
Specifications may be subject to change without notice
