Product Model

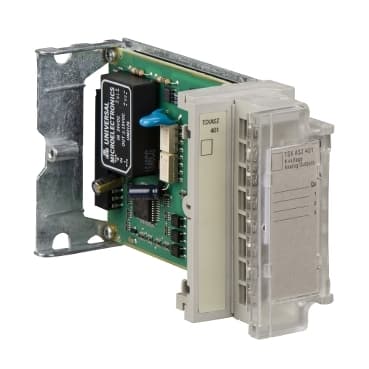

TSXASZ401
Selling Points
- 1High-Performance Analog Output Module: The TSXASZ401 offers 4 analog outputs with 12-bit conversion for precise control in automation systems.
- 2Compact Design: Weighing only 0.2 kg, this module is lightweight and easy to integrate into your setup.
- 3Reliable Operation: With an isolation voltage of 1000 V AC and short-circuit protection, it ensures reliable operation in demanding environments.
- 4Efficient Power Consumption: Consumes only 90 mA at 5VDC, making it energy-efficient and cost-effective.
- 5Wide Application Range: Designed for use in material handling, packaging, and textile machines, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Analog output module |
Number of channels | 4 | Analogue Output Type | +/- 10 V<br />0...10 V |
Analog/digital conversion | 11 bits 0...10 V<br />11 bits + sign +/- 10 V | Response time | 400 µs |
Output load | >= 2 Ohm | Protection type | Short-circuit |
Temperature drift | 0.096 %/10 °C | current consumption | 90 mA |
Isolation voltage | 1000 V AC | Net Weight | 0.4 lb(US) (0.2 kg) |
Specifications may be subject to change without notice
