schneiderPLC/PAC and Controllers
Product Model

TSXCCY1128C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34474

In Stock
Last updated: 2025/4/21
View Specifications

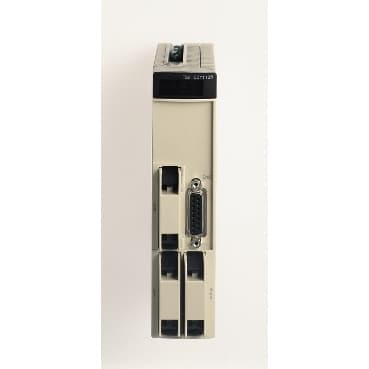

schneider TSXCCY1128C

Selling Points

  • 1High Precision Automation: The TSXCCY1128C offers 128 cams for precise control and positioning.
  • 2Efficient Power Consumption: With a power dissipation of just 7W, it is energy-efficient and cost-effective.
  • 3Versatile Connectivity: Supports various encoders including incremental and absolute SSI encoders.
  • 4Advanced Functionality: Includes features like parts counter, elimination of axis backflash, and position recalibration.
  • 5Reliable Performance: Designed for standard environments with robust electrical circuitry and I/O modularity.
Product Details
TSXCCY1128C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium Automation platform
Product or Component Type
Electronic cam module
Number of cams
128
Number of tracks
32
Function of module
Elimination of axis backflash<br />Switching feedforward<br />Measurement capture<br />Position, monostable, brake<br />Generation of events<br />Position recalibration<br />Parts counter
I/O modularity
1 axis
Electrical circuit type
Auxiliary input positive EN/IEC 61131 type 1<br />Incremental encoder with 10...30 V positive or negative<br />Incremental encoder with RS422 differential
Clock frequency
200 kHz SSI absolute encoder
Incremental encoder frequency x1
500 kHz
Incremental encoder frequency x 4
250 kHz
Power dissipation in W
7 W
Maximum output refresh cycle
100 µs 32<br />200 µs 128<br />50 µs 16
Input compatibility
Absolute encoder parallel output ABE7CPA11<br />Absolute encoder SSI serial output<br />Incremental encoder 10...30 V totem pole<br />Incremental encoder 5 V DC RS422/485 line emitter
Input voltage
24 V encoder with 10...30 V<br />24 V auxiliary input
Input current
10 mA RS422<br />15.5 mA encoder with 10...30 V<br />8 mA auxiliary input
Input voltage limits
<= 5.5 V RS422<br />19...30 V encoder with 10...30 V<br />19...30 V auxiliary input
Voltage state 1 guaranteed
<= 11 V encoder with 10...30 V<br />> 3 V RS422<br /><= 11 V auxiliary input
Current state 1 guaranteed
>= 5 mA encoder with 10...30 V)<br />>= 5.8 mA RS422)<br />>= 3 mA auxiliary input)
Voltage state 0 guaranteed
< 5 V encoder with 10...30 V<br /><= -3 V RS422<br />< 5 V auxiliary input
Current state 0 guaranteed
<= 2 mA encoder with 10...30 V)<br /><= -5.8 mA RS422)<br /><= 1.5 mA auxiliary input)
Response time
< 100 µs auxiliary input
Input impedance
Encoder with 10...30 V 1500 Ohm for nominal U<br />Auxiliary input 3000 Ohm for nominal U
Output type
Track output EN/IEC 61131-2
Output voltage
24 V DC
Nominal output current
0.5 A
Rated current
<= 12 A per module<br /><= 6 A per connector<br /><= 0.6 A per output
Output voltage limits
19...30 V
Output compatibility
Positive logic DC inputs (resistance <= 15 kOhm)
Maximum tungsten load
10 W
Switching frequency
< 0.6/LI² inductive
Preactuator voltage detection threshold
< 14 V fault state<br />> 18 V OK state
Output overload protection
Current limiter<br />Thermal circuit breaker
Output short-circuit protection
Thermal circuit breaker<br />Current limiter
Output overvoltage protection
Zener diode
Reverse polarity protection
Reverse diode on power supply
Checks
Monitoring peactuator power supply
Local signalling
for processor running (RUN) 1 LED (green)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)
Electrical connection
1 connector HE-10 20 pins for connecting the auxiliary inputs and the encoder power supply<br />1 connector HE-10 20 pins for connecting the track outputs on group 0 and 1<br />1 connector HE-10 20 pins for connecting the track outputs on group 2 and 3<br />1 connector SUB-D 15 for connecting incremental or absolute encoder
Current consumption
660 mA 5 V DC<br />15 mA 24 V DC
Module format
Standard
Net Weight
1.06 lb(US) (0.48 kg)
Electromagnetic discharge time
< L/R s
Protective treatment
Conformal coating Humiseal 1A33<br />TC
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation for operation<br />5…95 % without condensation for storage
Operating altitude
0...6561.68 ft (0...2000 m)

Specifications may be subject to change without notice
