Product Model

TSXCDP1001

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34476

In Stock
Last updated: 2025/4/21
View Specifications

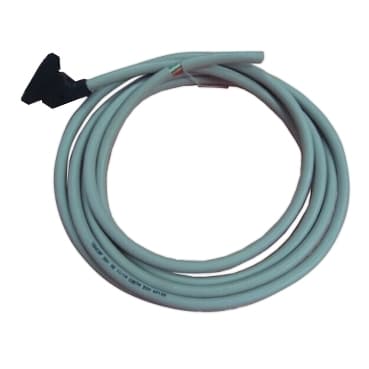

schneider TSXCDP1001

Selling Points

  • 110-meter length: Ideal for connecting Modicon Premium PLC servodrive components.
  • 2Durable construction: Ensures reliable performance in industrial environments.
  • 3Preformed design: Simplifies installation with no need for custom cabling.
  • 4Compatibility: Specifically designed for Modicon Premium PLC systems.
  • 5Discontinued but available: Last chance to purchase before end-of-service on December 31, 2024.
Product Details
TSXCDP1001
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium
Accessory / separate part designation
Preformed cable
accessory / separate part type
Connecting cable
accessory / separate part category
Connection accessories
Accessory / separate part destination
Servo drive<br />Modicon Premium PLC
Product Compatibility
TSXCTY2A<br />TSXCFY21<br />TSXCTY2C<br />TSXCCY1128<br />TSXCTY4A<br />TSXCFY11
Cable length
32.8 ft (10 m)
Electrical connection
1 insulated connector HE10, 20 ways module side<br />Free end with 4 colour-coded wires PLC side
Wire section
0.0005 in² (0.324 mm²)
AWG Gauge
AWG 22
Net Weight
2.67 lb(US) (1.21 kg)

Specifications may be subject to change without notice
