schneiderPLC/PAC and Controllers
Product Model

TSXCDP1003

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34477

In Stock
Last updated: 2025/4/21
View Specifications

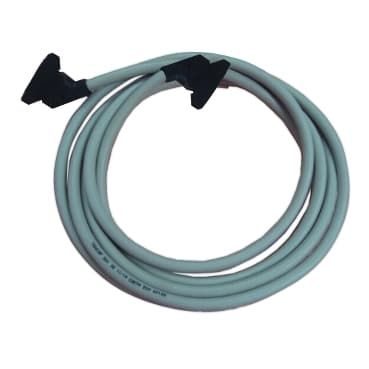

schneider TSXCDP1003

Selling Points

  • 1Premium Quality: Designed for high-performance applications with TSXCTY4A, TSXCTY2C, and other modules.
  • 210m Cable Length: Ideal for connecting devices over a reliable 10-meter distance.
  • 3US Origin: Manufactured in the United States for quality assurance.
  • 4RoHS Compliant: Meets European Union's Restriction of Hazardous Substances (RoHS) standards.
  • 5Compatibility: Compatible with various Modicon modules including TSXCFY21 Motion Control Module and TSXCCY1128 Electronic Cam Module.
Product Details
TSXCDP1003
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium
Accessory / separate part designation
Connecting cable
accessory / separate part type
Connecting cable
accessory / separate part category
Connection accessories
Accessory / separate part destination
Sub-base ABE7H16R20
Product Compatibility
TSXCTY4A<br />TSXCTY2C<br />TSXCFY21<br />TSXCTY2A<br />TSXCCY1128<br />TSXCFY11<br />TSXCAY
Cable length
32.8 ft (10 m)
Electrical connection
1 connector HE10, 20 ways module side<br />1 connector HE10, 20 ways PLC side
Wire section
0.0005 in² (0.324 mm²)
Net Weight
2.71 lb(US) (1.23 kg)

Specifications may be subject to change without notice
