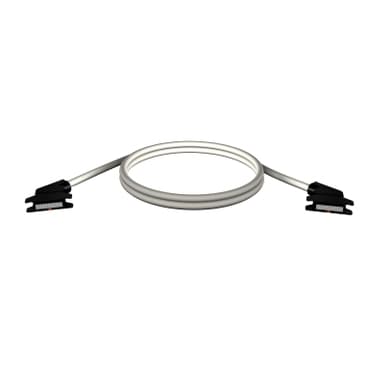

Product Model
TSXCDP102
Selling Points
- 1Compatible with Modicon Premium Automation platform.
- 21-meter cable length with 2 HE10 connectors (20 ways).
- 3Ideal for encoder supply (5 V/10...30 V DC) and auxiliary inputs (24 V DC).
- 4AWG 28 wire section with a current per channel of <= 0.1 A.
- 518-month warranty and eco-friendly packaging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Accessory / separate part designation | Rolled ribbon connecting cable |
accessory / separate part type | Connecting cable | accessory / separate part category | Connection accessories |
Accessory / separate part destination | I/O module fitted with HE10 connectors<br />Telefast 2 sub-base | Product Specific Application | Encoder supply 5 V/10...30 V DC<br />Auxiliary inputs supply 24 V DC |
Product Compatibility | ABE7H16R20<br />ABE7H08R10<br />TSXCTY2C | Cable length | 3.3 ft (1 m) |
Electrical connection | 2 connectors HE10, 20 ways | Wire section | 0.0001 in² (0.08 mm²) |
AWG Gauge | AWG 28 | Current per channel | 0.1 A |
Net Weight | 0.20 lb(US) (0.09 kg) |
Specifications may be subject to change without notice
