Product Model
TSXCDP302
Selling Points
- 1Designed for I/O modules with HE10 connectors, ensuring secure and reliable connections.
- 2Provides ample reach for various automation setups without the need for additional cables.
- 3Backed by a comprehensive 2-year warranty from Schneider Electric for peace of mind.
- 4Meets RoHS standards, ensuring environmental sustainability and compliance.
- 5Suitable for auxiliary inputs supply (24 V DC) and encoder supply (5 V/10...30 V DC), making it versatile for various automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

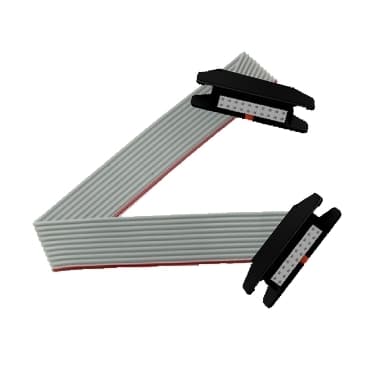

Range of Product | Modicon Premium Automation platform | Accessory / separate part designation | Rolled ribbon connecting cable |
accessory / separate part type | Connecting cable | accessory / separate part category | Connection accessories |
Accessory / separate part destination | Telefast 2 sub-base<br />I/O module fitted with HE10 connectors | Product Specific Application | Encoder supply 5 V/10...30 V DC<br />Auxiliary inputs supply 24 V DC |
Product Compatibility | ABE7H08R10<br />TSXCTY2C<br />ABE7H16R20 | Cable length | 9.8 ft (3 m) |
Electrical connection | 2 connectors HE10, 20 ways | Wire section | 0.0001 in² (0.08 mm²) |
AWG Gauge | AWG 28 | Current per channel | 0.1 A |
Net Weight | 0.55 lb(US) (0.25 kg) |
Specifications may be subject to change without notice
