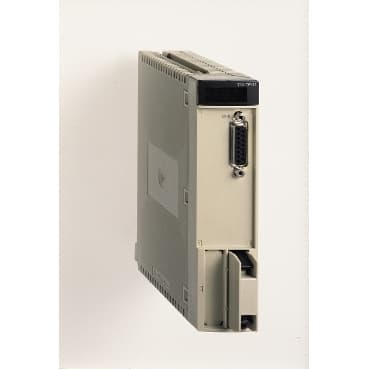

Schneider Electric TSXCFY11 Motion Control Module for Stepper Motors

Selling Points

1Complementary I/O Modularity: Enhance your automation with modular inputs and outputs.
2High Pulse Frequency: Achieve precise control with a pulse frequency up to 187 kHz.
3Efficient Power Dissipation: Operate at 3.8 W, ensuring optimal energy usage.
4Versatile Input Types: Support current sink, resistive amplifier, and discrete inputs.
5Advanced Diagnostic Capabilities: Monitor module status with 2 LEDs for axis diagnostics and module operation.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon Premium Automation platform	Product or Component Type	Motion control module
Product Specific Application	For stepper motors	Software Designation	Unity Pro
I/O modularity	1 axis	Maximum pulse frequency	187 kHz
Power dissipation in W	3.8 W	Input type	Current sink auxiliary input EN/IEC 61131 type 2<br />Resistive amplifier input
Discrete input logic	Negative amplifier input<br />Positive auxiliary input	Input voltage	24 V 7 mA auxiliary input<br />5 V 4.5 mA amplifier input
Input voltage limits	19...30 V auxiliary input	Voltage state 1 guaranteed	< 2 V amplifier input<br />>= 11 V auxiliary input
Current state 1 guaranteed	>= 6 mA auxiliary input)	Voltage state 0 guaranteed	<= 5 V auxiliary input<br />> 3.6 V amplifier input
Current state 0 guaranteed	<= 2 mA auxiliary input)	Input impedance	3400 Ohm auxiliary input
Input immunity	< 250 µs auxiliary input for homing cam and event inputs<br />15...30 µs amplifier input for loss of step input<br />3000...10000 µs auxiliary input for limit switch, emergency stop and external stop inputs<br />3000...16000 µs amplifier input for amplifier fault input	Power supply monitoring	0…14 V auxiliary input at fault state<br />18…24 V auxiliary input at OK state
Maximum detection time	< 30 ms auxiliary input from fault to OK state<br />> 1 ms auxiliary input from OK to fault state	Input compatibility	With 2-wire/3-wire sensor auxiliary input
Output type	Open collector PNP brake output EN/IEC 61131-2<br />RS422, TTL 5 V open collector NPN compatible amplifier output	Output differential voltage	+/- 2 V <= 100 Ohm amplifier output
Maximum output short-circuit current	150 mA amplifier output	Permissible common mode voltage	7 V amplifier output
Maximum permissible differential voltage	12 V amplifier output	Output voltage	24 V DC 19...30 V brake output
Nominal output current	0.5 A <0.3 mA 0.625 A brake output	Maximum voltage drop	<1 V at state on brake output
Switching time	< 0.25 ms brake output	Output compatibility	Positive logic DC inputs (resistance <= 15 kOhm) brake output
Short-circuit protection	Thermal tripping via program or automatically brake output	Output overload protection	Current limiter brake output
Output overvoltage protection	Zener diode brake output	Reverse polarity protection	Brake output reverse mounted diode on supply
Speed profile path	Trapezoidal	Operating Mode	OFF<br />Manually<br />Direct drive mode<br />AUTO
Checks	Sensor power supply<br />Amplifier, limits switches, emergency stop<br />Short circuit (one signalling bit per channel)<br />Correct execution by software position limits, loss of step<br />Validity of parameters<br />Consistency of commands	Optional commands	Boost<br />Brake
Local signalling	for module operating (RUN) 1 LED (green)<br /> for external fault (I/O) 1 LED (red)<br /> for internal fault, module failure (ERR) 1 LED (red)<br /> for axis diagnostics available (CH.) 2 LEDs (green)	Electrical connection	1 connector HE-10, 20 pins<br />1 connector SUB-D 15
Current consumption	510 mA 5 V DC<br />50 mA DC	Module format	Standard
Net Weight	0.97 lb(US) (0.44 kg)	Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)	Relative Humidity	5…95 % without condensation
Operating altitude	<= 6561.68 ft (2000 m)
