Product Model

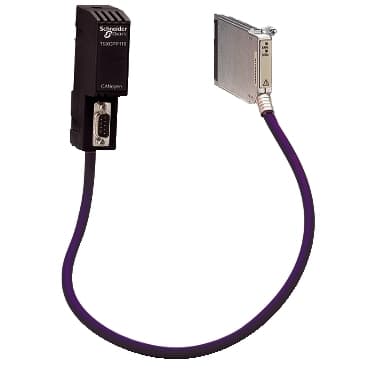

TSXCPP110C
Selling Points
- 1Meets the CANopen standard profile for seamless integration into industrial automation systems.
- 2Supports transmission rates from 10 kbit/s to 1000 kbit/s, ensuring efficient data transfer.
- 3Available as a PCMCIA card, making it easy to install in various industrial control units.
- 4Built with durable components, ensuring reliable operation in harsh industrial environments.
- 5Comes with a comprehensive 2-year warranty from MRO Electric for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | CANopen bus master PCMCIA card |
Software Designation | CANopen standard | Software Version | V4.02 |
Additional information | Unauthorized on TSX P57 153M/154M processor | Electrical connection | 1 male connector SUB-D 9 + TAP junction CANopen bus connection |
Product Compatibility | Modicon Premium TSXP57<br />Atrium TSXPCI or TPCX<br />Device conforms to CANopen standard profile | Memory type | PCMCIA card III |
Bus conformity class | M00 | communication port protocol | CANopen |
Method of access | Master | Transmission Rate | 800 kbit/s<br />500 kbit/s<br />125 kbit/s<br />20 kbit/s<br />10 kbit/s<br />1000 kbit/s<br />50 kbit/s<br />250 kbit/s |
Transmission support medium | 2 twisted shielded pairs cable | Communication Service | Message handling (SDO)<br />Management of bus operating modes<br />PDO cyclic exchanges |
Number of modules per PLC per PC | 1 Premium TSXP57 | Current consumption | 60 mA 5 V DC |
marking | CE | Net Weight | 0.51 lb(US) (0.23 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | IP Degree of Protection | IP20 |
Standards | DR 303-2<br />DS 301 V4.02 | Product Certifications | CSA<br />UL |
Protective treatment | Conformal coating Humiseal 1A33 |
Specifications may be subject to change without notice
