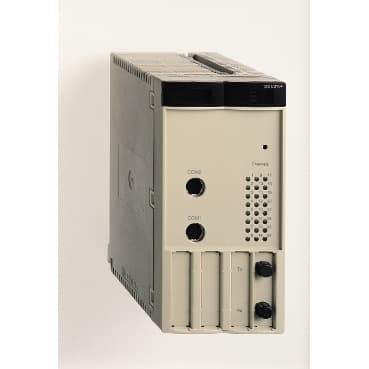

schneider TSXCSY84

Selling Points

  • 1Supports four imaginary, four remote, and eight real axes for intricate control needs.
  • 2Operates on the SERCOS 2 communication network with a transmission rate of 4 Mbit/s.
  • 3Conforms to EN 61491 standards, ensuring robustness in demanding environments.
  • 4Transmits data up to 150 meters via fiber optic cables, with a maximum length of 38 meters for plastic cables.
  • 5Consumes only 9 watts of power, minimizing energy wastage and ensuring environmental sustainability.
Product Details
TSXCSY84
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium Automation platform
Product or Component Type
Multi axis control module
Product Specific Application
SERCOS digital servo drives
Number of Channels
32
Number of axis
4 imaginary<br />4 remote<br />8 real
Path function
Following of auxiliary axes<br />Simple linear path
Communication Network Type
SERCOS 2
Structure type
Industrial EN 61491
Set of axes
4 followers<br />4 coordinated
Cam profile
7
Topology
Ring
Transmission support medium
Fiber optic cable
Transmission Rate
4 Mbit/s
Cycle time
2 ms 2<br />2 ms 4<br />4 ms 8
maximum number of segment of SERCOS network
9
Maximum optic fiber length
492.1 ft (150 m) glass<br />124.7 ft (38 m) plastic
Maximum length of segment
328.08 ft (100 m) bus X
Power dissipation in W
9 W
Local signalling
for module operating (RUN) 1 LED (green)<br /> for external fault (I/O) 1 LED (red)<br /> for internal fault, module failure (ERR) 1 LED (red)<br /> for flashing indicates data transmission and reception (SER) 1 LED (yellow)<br /> for flashing module reinitializing (INI) 1 LED (yellow)<br /> for channel diagnostic 24 LEDs (green)
Current consumption
1800 mA 5 V DC
Net Weight
1.15 lb(US) (0.52 kg)
Standards
EN/IEC 61491
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative Humidity
10…95 % without condensation
