Product Model

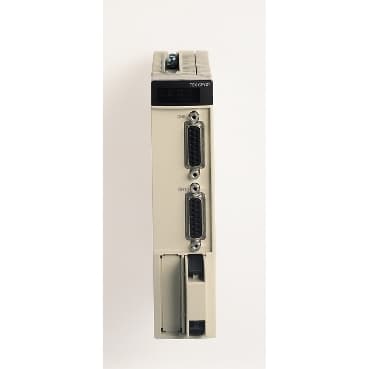

TSXCTY2A
Selling Points
- 1The TSXCTY2A offers precise counting with a frequency of 40 kHz and a cycle time of 5 ms.
- 2Features 2-channel I/O modularity for versatile configuration and integration into various industrial applications.
- 3Compatible with 2/3-wire proximity sensors (PNP/NPN) and incremental encoders, ensuring flexibility in application design.
- 4Delivers a 24 V DC nominal output voltage with a maximum output current of 0.5 A, ensuring reliable operation.
- 5Equipped with built-in overload, short-circuit, and overvoltage protection mechanisms for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Counter modules |
I/O modularity | 2 channels | Electrical circuit type | Auxiliary output EN/IEC 61131 |
Counting frequency | 40 kHz | Power dissipation in W | 4.5…6 W |
Cycle time | 5 ms | Discrete input logic | Current sink auxiliary input (preset, enable and read) IEC 1131 Type 2<br />Resistive 2/3-wire proximity sensors PNP/NPN input IEC 1131 Type 2<br />Resistive encoder input |
Input logic | Positive | Input compatibility | 2/3-wire proximity sensors PNP/NPN<br />Incremental encoder 10...30 V totem pole<br />Incremental encoder 5 V DC RS422 |
Input voltage | 24 V 18 mA 2/3-wire proximity sensors PNP/NPN<br />24 V 7 mA auxiliary input (preset, enable and read)<br />5 V 18 mA encoder input | Input voltage limits | <= 5.5 V encoder input<br />19...30 V 2/3-wire proximity sensors PNP/NPN<br />19...30 V auxiliary input (preset, enable and read) |
Voltage state 1 guaranteed | >= 11 V 2/3-wire proximity sensors PNP/NPN<br />>= 11 V auxiliary input (preset, enable and read)<br />>= 2.4 V encoder input | Current state 1 guaranteed | >= 3.7 mA encoder input)<br />>= 6 mA 2/3-wire proximity sensors PNP/NPN)<br />>= 6 mA auxiliary input (preset, enable and read)) |
Voltage state 0 guaranteed | <= 1.2 V encoder input<br /><= 5 V 2/3-wire proximity sensors PNP/NPN<br /><= 5 V auxiliary input (preset, enable and read) | Current state 0 guaranteed | <= 1 mA encoder input)<br /><= 2 mA 2/3-wire proximity sensors PNP/NPN)<br /><= 2 mA auxiliary input (preset, enable and read)) |
Response time | < 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read) | Input impedance | Encoder input > 270 Ohm at U = 2.4 V<br />2/3-wire proximity sensors PNP/NPN 1400 Ohm at Un<br />Auxiliary input (preset, enable and read) 3400 Ohm at Un<br />Encoder input 400 Ohm at Un |
Output voltage | 24 V DC | Nominal output current | 0.5 A |
Output voltage limits | 19...30 V | Maximum voltage drop | <0.5 V at state 1 |
Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) auxiliary output | Maximum leakage current | 0.1 mA |
Switching frequency | < 0.6/LI² Hz on inductive load | Output overload protection | Thermal tripping via program or automatically<br />Current limiter |
Output short-circuit protection | Thermal tripping via program or automatically<br />Current limiter | Output overvoltage protection | Zener diode |
Reverse polarity protection | Reverse diode on supply | Checks | Sensor power supply |
Current consumption | 280 mA 5 V DC<br />30 mA 24 V DC | Module format | Standard |
Local signalling | for module operating (RUN) 1 LED (green)<br /> for external fault (I/O) 1 LED (red)<br /> for internal fault, module failure (ERR) 1 LED (red)<br /> for axis diagnostics available (CH.) 2 LEDs (green) | Electrical connection | 1 connector HE-10, 20 pins<br />2 connectors SUB-D 15 |
Net Weight | 0.71 lb(US) (0.32 kg) | Protective treatment | TC |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 5…95 % without condensation | Operating altitude | <= 6561.68 ft (2000 m) |
