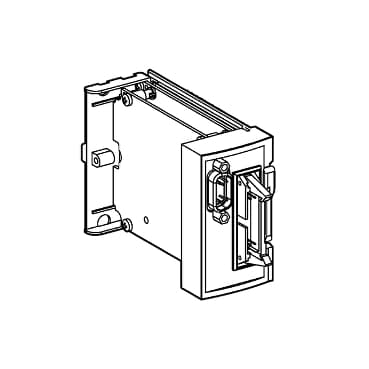

Product Model
TSXCTZ1A
Selling Points
- 1Count objects on a conveyor belt with a frequency of 40 kHz.
- 2Compatible with 5 VDC or 24 VDC, ensuring flexibility in various industrial settings.
- 3Only 15 mA of current consumption, reducing energy costs and extending module lifespan.
- 4Process events in 1.5 ms and main tasks in 8 ms, enhancing system efficiency.
- 5Meets IEC 1131 Type 2 standards for reliable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Counter modules |
Counting input number | 1 | Counting frequency | 40 Hz |
Network Frequency | 100 Hz | Input voltage | 5 V DC<br />24 V DC |
Input current | 18 mA | Efficiency at full load | >= 2.4 V at state 1 5 V DC<br /><= 1.2 V at state 0 5 V DC<br />>= 11 V at state 1 24 V DC<br /><= 5 V at state 0 24 V DC<br />5.5 V 5 V DC<br />19...30 V 24 V DC |
Current state 0 guaranteed | <= 1 mA 5 V DC<br /><= 2 mA 24 V DC | Current state 1 guaranteed | >= 6 mA 24 V DC<br />>= 3.7 mA 5 V DC |
Response time | 1.5 ms event processing<br />8 ms master task | Sensor power supply | 2.5 V |
current consumption | 15 mA | Logic input | Positive |
Input impedance | 0.27 Ohm 5 V DC at Un<br />1.4 Ohm 24 V DC at Un<br />>= 0.44 Ohm 5 V DC at U = 2.4 V | Response Time | 3 ms |
Input type | Resistive 24 V DC | Input compatibility | 2-wire/3-wire proximity sensor 24 V DC |
Net Weight | 0.4 lb(US) (0.2 kg) | Standards | IEC 1131 Type 2 24 V DC |
Specifications may be subject to change without notice
