Product Model

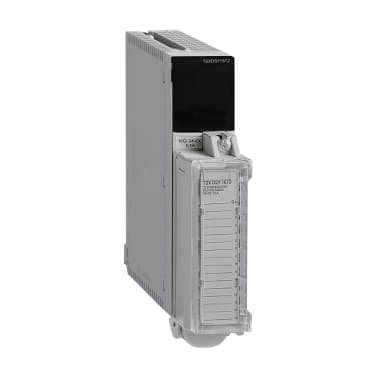

TSXDEY08D2C
Selling Points
- 1Each input channel is electrically isolated from others and the power supply, preventing electrical noise or ground loops.
- 2Designed for use with 2-wire or 3-wire sensors, ensuring compatibility with various industrial processes.
- 3Meets international safety standards for programmable controllers, ensuring high reliability and safety.
- 4Fits into tight spaces within control cabinets, ideal for space-constrained industrial settings.
- 5<10 MOhm at 500 V DC, providing robust electrical isolation and preventing interference.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete input module |
Discrete input number | 8 current sink isolated EN/IEC 61131-2 type 2 | Discrete input voltage | 24 V DC positive |
Sensor power supply | 19…30 V | Input compatibility | With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2 |
Discrete input current | 7 mA | Voltage state 1 guaranteed | >= 11 V |
Current state 1 guaranteed | >= 6.5 mA | Voltage state 0 guaranteed | <= 5 V |
Current state 0 guaranteed | <= 2 mA | Input impedance | 4000 Ohm at state 1 |
Response Time | <= 7 ms<br />4 ms | isalotion resistance | < 10 MOhm 500 V DC |
Power dissipation | (1 W + 0.15 W x No of channels used) | Electrical Connection | Screw terminal |
marking | CE | Current consumption | 55 mA 5 V DC<br />80 mA 24 V DC |
Module format | Standard | Net Weight | 0.7 lb(US) (0.3 kg) |
Dielectric strength | 1500 V AC 50/60 Hz | Standards | 92/31/EEC<br />CSA C22.2 No 142<br />93/68/EEC<br />EN/IEC 61131-2<br />IEC 60664<br />89/336/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 213 Class I Division 2 Group B<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group D |
Product Certifications | DNV<br />RINA<br />LR<br />ABS<br />GL<br />RMRS<br />BV | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | Conformal coating Humiseal 1A33<br />TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
