Product Model

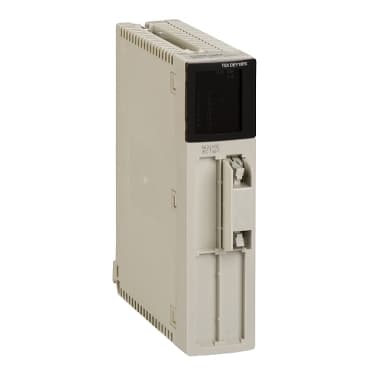

TSXDEY16FK
Selling Points
- 116 current sink isolated fast inputs conforming to EN/IEC 61131-2 type 1.
- 2Compatible with 2/3 wires proximity sensors and 24V DC positive.
- 3Power dissipation of (1.2 W + 0.1 W x No of channels used).
- 4Insulation resistance < 10 MOhm at 500 V DC.
- 5CE marked and available with a 2-year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete input module |
Discrete input number | 16 current sink isolated fast EN/IEC 61131-2 type 1 | Discrete input voltage | 24 V DC positive |
Sensor power supply | 19…30 V | Discrete input current | 3.5 mA |
Voltage state 1 guaranteed | >= 11 V | Current state 1 guaranteed | >= 3 mA |
Voltage state 0 guaranteed | <= 5 V | Current state 0 guaranteed | <= 1.5 mA |
Input impedance | 6300 Ohm at state 1 | Response Time | 0.1...7.5 ms |
isalotion resistance | < 10 MOhm 500 V DC | Power dissipation | (1.2 W + 0.1 W x No of channels used) |
Electrical Connection | HE-10 connector | marking | CE |
Current consumption | 250 mA 5 V DC<br />75 mA 24 V DC | Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) | Dielectric strength | 1500 V AC 50/60 Hz |
Standards | CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />UL 508<br />EN/IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC<br />89/336/EEC<br />73/23/EEC<br />CSA C22.2 No 142<br />IEC 60664 | Product Certifications | BV<br />DNV<br />ABS<br />RINA<br />GL<br />LR<br />RMRS |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
