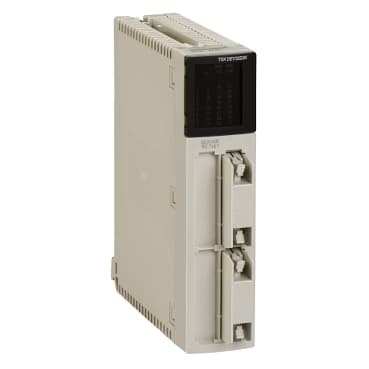

schneider TSXDEY32D2K

Selling Points

  • 1The TSXDEY32D2K module delivers 32 current sink isolated inputs compliant with EN/IEC 61131-2 type 1 standards.
  • 2Equipped with 24 V DC positive nominal voltage, ensuring consistent performance in various operating conditions.
  • 3Features a response time of 4 ms, providing quick and reliable data acquisition.
  • 4Balances performance with energy efficiency, consuming 135 mA at 5 V DC and 160 mA at 24 V DC.
  • 5Marked with CE certification, indicating compliance with rigorous quality and safety standards for industrial applications.
Product Details
TSXDEY32D2K
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium Automation platform
Product or Component Type
Discrete input module
Discrete input number
32 current sink isolated EN/IEC 61131-2 type 1
Discrete input voltage
24 V DC positive
Sensor power supply
19…30 V
Discrete input current
3.5 mA
Voltage state 1 guaranteed
>= 11 V
Current state 1 guaranteed
>= 3 mA
Voltage state 0 guaranteed
<= 5 V
Current state 0 guaranteed
<= 1.5 mA
Input impedance
6300 Ohm at state 1
Response Time
<= 7 ms<br />4 ms
isalotion resistance
< 10 MOhm 500 V DC
Power dissipation
(1 W + 0.1 W x No of channels used)
Electrical Connection
HE-10 connector
marking
CE
Current consumption
135 mA 5 V DC<br />160 mA 24 V DC
Module format
Standard
Net Weight
0.7 lb(US) (0.3 kg)
Dielectric strength
1500 V AC 50/60 Hz
Standards
CSA C22.2 No 213 Class I Division 2 Group B<br />IEC 60664<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />EN/IEC 61131-2<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />73/23/EEC<br />89/336/EEC
Product Certifications
LR<br />GL<br />BV<br />RMRS<br />RINA<br />ABS<br />DNV
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation for operation<br />5…95 % without condensation for storage
Operating altitude
0...6561.68 ft (0...2000 m)
Protective treatment
TC
IP Degree of Protection
IP20
Pollution degree
2

Specifications may be subject to change without notice
