TSXDEY32D3K

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34503

In Stock
Last updated: 2025/4/21
View Specifications

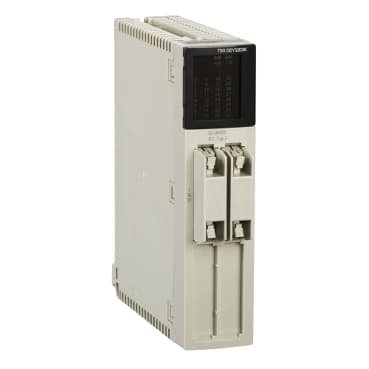

schneider TSXDEY32D3K

Selling Points

  • 1High-Speed Input Monitoring: The TSXDEY32D3K module offers 32 high-speed discrete inputs for precise monitoring and control.
  • 2Robust Environmental Protection: Equipped with TC protective treatment, ensuring durability and resistance to harsh industrial environments.
  • 348 V DC Operation: Designed to operate at 48 V DC, providing consistent performance in various industrial settings.
  • 4Enhanced Safety Features: Insulation resistance < 10 MOhm at 500 V DC, ensuring safety protocols are met.
  • 5Easy Installation: Features HE-10 connectors for secure electrical connections, simplifying integration into existing setups.
Product Details
TSXDEY32D3K
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium Automation platform
Product or Component Type
Discrete input module
Discrete input number
32 current sink isolated EN/IEC 61131-2 type 2
Discrete input voltage
48 V DC positive
Sensor power supply
38…60 V
Input compatibility
With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2
Discrete input current
7 mA
Voltage state 1 guaranteed
>= 30 V
Current state 1 guaranteed
>= 6.5 mA
Voltage state 0 guaranteed
<= 10 V
Current state 0 guaranteed
<= 2 mA
Input impedance
6300 Ohm at state 1
Response Time
4 ms<br /><= 7 ms
isalotion resistance
< 10 MOhm 500 V DC
Power dissipation
(2 W + 0.1 W x No of channels used)
Electrical Connection
HE-10 connector
marking
CE
Current consumption
140 mA 5 V DC<br />275 mA 24 V DC
Module format
Standard
Net Weight
0.68 lb(US) (0.31 kg)
Dielectric strength
1500 V AC 50/60 Hz
Standards
73/23/EEC<br />IEC 60664<br />92/31/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group B<br />UL 508<br />93/68/EEC<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 142<br />EN/IEC 61131-2
Product Certifications
GL<br />ABS<br />BV<br />RMRS<br />LR<br />DNV<br />RINA
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation for operation<br />5…95 % without condensation for storage
Operating altitude
0...6561.68 ft (0...2000 m)
Protective treatment
TC
IP Degree of Protection
IP20
Pollution degree
2

Specifications may be subject to change without notice
