Product Model

TSXDMY28FK

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34512

In Stock
Last updated: 2025/4/21
View Specifications

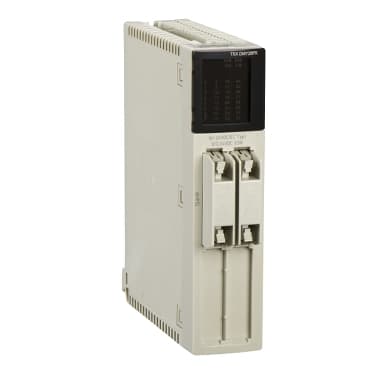

schneider TSXDMY28FK

Selling Points

  • 1High-performance power supply with 28A output.
  • 2Compact design for easy integration into systems.
  • 3Enhanced reliability with robust build quality.
  • 4Wide range of input voltage compatibility (85-264V).
  • 5Meets or exceeds international safety standards (UL, CE).
Product Details
TSXDMY28FK
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Premium Automation platform
Product or Component Type
Discrete I/O modules
Discrete I/O number
28
Discrete input number
16 current sink fast input IEC 1131-2 Type 1
Input logic
Positive
Input voltage
24 V 3.5 mA DC
Voltage state 1 guaranteed
>= 11 V
Current state 1 guaranteed
>= 3 mA
Voltage state 0 guaranteed
<= 5 V
Current state 0 guaranteed
<= 1.5 mA
Sensor power supply
19…30 V
Filter time
0.1 to 7.5 ms by configuration<br />4 ms by default
Paralleling of inputs
Yes
Input compatibility
2-wire/3-wire proximity sensor
Insulation resistance
> 10 MOhm 500 V DC
Power dissipation
1.2 W + 0.1 x number of input at 1
Discrete output number
12
Maximum tungsten load
<6 W solid state output
Output voltage
24 V 0.5 A
Discrete output type
Solid state
Output voltage limits
19...30 V
Maximum output current
4 A by module<br />0.5 A by channel
Maximum leakage current
1 mA at state 0
[Ures] residual voltage
1.2 V at state 1
Minimum load impedance
48 W
Response time on output
0.6 ms
Switching frequency
0.5/LI² Hz
Output overvoltage protection
By transil diode
Reverse polarity protection
Reversed diode
Preactuator voltage detection threshold
16 V
Electrical connection
2 connectors HE-10
Current consumption
300 mA 5 V DC<br />75 mA 24 V DC
Module format
Standard
Net Weight
0.71 lb(US) (0.32 kg)
Dielectric strength
1500 V 50/60 Hz for 1 minute
Derating factor
60 % of inputs at state 1 140 °F (60 °C) fast input<br />60 % of the maximum current of the module 140 °F (60 °C) solid state output
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
5…95 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
