Product Model

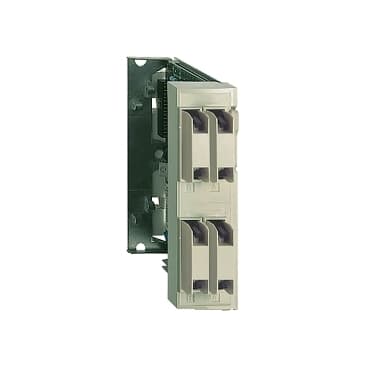

TSXDMZ64DTK
Selling Points
- 1High-capacity power distribution unit with 64 outlets.
- 2Compact design for easy installation in tight spaces.
- 3Advanced thermal management for optimal performance.
- 4Meets or exceeds IEC and UL standards for safety.
- 5Ideal for data centers, industrial, and commercial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Discrete solid state I/O base DC |
Discrete input number | 32 1 HE-10 connector | Discrete input voltage | 24 V DC positive |
Discrete input current | 3.5 mA | Discrete input type | Current sink |
Discrete output number | 32 1 HE-10 connector | Discrete output voltage | 24 V DC |
Discrete output current | 0.1 mA | Discrete output logic | Positive |
Input voltage limits | >= 11 V at state 1<br />< 5 V at state 0 | Current state 0 guaranteed | <= 1.5 mA |
Current state 1 guaranteed | >= 2.5 mA | input impedance | 6.3 Ohm |
Response time | 0.1...7.5 ms from state 1 to state 0 input<br />0.1...7.5 ms from state 0 to state 1 input<br />< 2.5 ms from state 1 to state 0 output<br />< 2.5 ms from state 0 to state 1 output | Input compatibility | 2-wire/3-wire proximity sensor |
Current consumption | 197 mA | Power dissipation in W | 3.5 W by module output<br />0.15 W by channel output<br />5 W input |
Output voltage limits | 19...30 V | Output current limits | 0.25 A |
Maximum leakage current | 0.1 mA at state 0 | [Ures] residual voltage | 1.5 V |
Load impedance ohmic | 220 Ohm | Switching frequency | < 0.5/LI² Hz |
Output overvoltage protection | By zener diode | Output short-circuit protection | By current limiter and electronic circuit breaker |
Reverse polarity protection | Reverse diode on power supply | Paralleling of outputs | Yes : 3 maximum |
Isolation voltage | 1500 V 1 s | Net Weight | 0.90 lb(US) (0.41 kg) |
Standards | IEC 1131-2 Type 1 |
Specifications may be subject to change without notice
