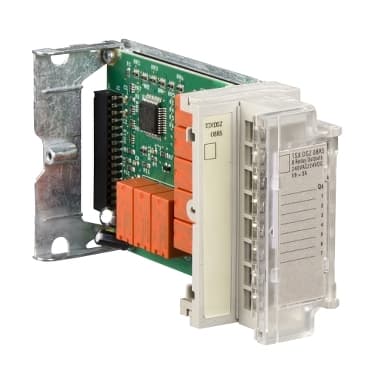

Product Model
TSXDSZ32R5
Selling Points
- 1High reliability and durability for critical systems.
- 2Compact design with high power density for space-saving installations.
- 3Advanced thermal management for extended lifespan and performance.
- 4Compliant with international safety standards for secure operation.
- 5Versatile connectivity options for easy integration into various setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Relay discrete output module |
Discrete output number | 32 screw terminal block | Contacts type and composition | NO |
Output voltage limits | 19...264 V AC<br />10...34 V DC | [Ith] conventional free air thermal current | 2 A |
Power consumption in VA | 50 VA 24 V AC-12 resistive<br />24 VA 24 V AC-15 inductive<br />100 VA 48 V AC-12 resistive<br />200 VA 110...120 V AC-12 resistive<br />200 VA 200...240 V AC-12 resistive<br />50 VA 48 V AC-15 inductive<br />50 VA 110...120 V AC-15 inductive<br />50 VA 200...240 V AC-15 inductive | Power consumption in W | 24 V DC-13 inductive<br /> 24 V DC-12 resistive |
Response Time | < 10 ms | current consumption | 175 mA |
Power dissipation in W | 3.5 W | Isolation voltage | 1500 V 1 s |
Insulation resistance | >= 10 mOhm |
Specifications may be subject to change without notice
