Product Model
TSXETY210
Selling Points
- 1High-performance power supply unit designed for critical applications.
- 2Compact and lightweight design for easy integration.
- 3Wide input voltage range (85-264VAC) for global compatibility.
- 4High efficiency (up to 92%) for reduced energy consumption.
- 5Built-in protection features including overcurrent, overvoltage, and short-circuit protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Ethernet TCP/IP module |

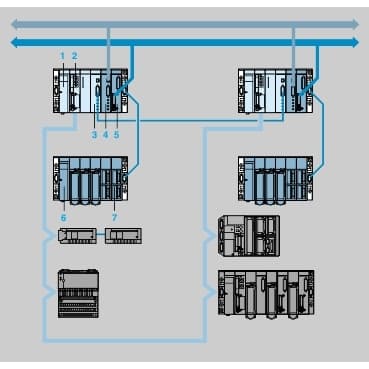

Automation architecture | Premium Warm Standby | Physical interface | AUI - 100BASE-5 1 AUI cable<br />RJ45 - 10BASE-T 1 twisted pair |
Transmission rate | 10 Mbit/s | Communication service | Modbus TCP messaging<br />SNMP agent<br />Uni-TE messaging<br />Common words, Ethway/X-Way |
Supply | Via the power supply of the rack | Local signalling | for collision detection (COL) 1 LED<br /> for Ethernet network status (RUN) 1 LED<br /> for Ethernet port fault (ERR) 1 LED<br /> for transmission/reception activity (TX/TR) 1 LED |
communication port protocol | Modbus TCP<br />Ethway/X-Way<br />Uni-Telway | Maximum number of connections | 64 |
Web server | Transparent ready class A10 | marking | CE |
Product compatibility | PL7 Pro<br />Unity Pro | Current consumption | 1200 mA 5 V DC with remote power supply (AUI)<br />800 mA 5 V DC without remote power supply (RJ45) |
Module format | Standard | Net Weight | 0.75 lb(US) (0.34 kg) |
Standards | FM Class 1 Division 2 group C<br />FM Class 1 Division 2 group A<br />FM Class 1 Division 2 group B<br />FM Class 1 Division 2 group D<br />EN 61131-2 | Product Certifications | UL 508<br />CSA 1010-1 |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
Specifications may be subject to change without notice
