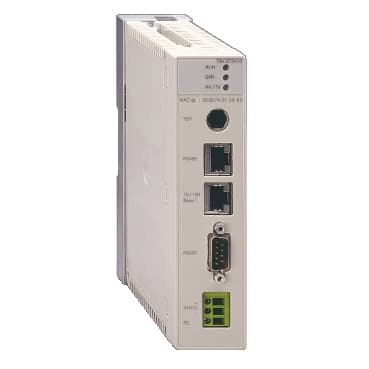

Product Model
TSXETZ410
Selling Points
- 1High-performance power supply with 410W output.
- 2Compact design for easy integration into various systems.
- 3Advanced thermal management for extended lifespan.
- 4Compliant with international safety standards (UL, CE).
- 5Reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | FactoryCast Gateway | Product or Component Type | Ethernet module |
Kit composition | Gateway module<br />User manual<br />Web Designer software (CD-ROM) | Concept | Transparent Ready |
Type of modem | Via satellite<br />Via radio<br />Via telephone line | Structure type | Heterogeneous industrial bus Ethernet IEEE 802.3 |
Topology | Star Ethernet<br />Tree-structure Ethernet | Transmission Rate | 10/100 Mbit/s Ethernet<br />56 kbit/s maximum serial link by modem |
Web services | Web pages defined by the user (8 MB available)<br />Access function to the PLC data and variables Data Editor<br />Communication diagnostics function<br />Graphic objects editor<br />PLC diagnostics system function RackViewer<br />Maximum simultaneous connection of 8 standard browsers<br />IP configuration for TSX ETZ 410/510 module via standard browser | Communication service | 1 kB client/server requests Uni-Telway<br />128 byte client/server requests Uni-Telway<br />128 byte synchronous requests Modbus<br />Client/server mode Modbus<br />Client/server mode Uni-Telway |
[Us] rated supply voltage | 24 V DC | communication port protocol | Serial link by modem<br />Ethernet |
Physical interface | RTC link RS232 serial link by modem | Exchange mode | Half or full duplex serial link by modem<br />Manchester-type baseband Ethernet |
Transmission support medium | Double shielded twisted pair of type STP 10BASE-T ETHERNET<br />Ethernet cable category 5 100BASE-T ETHERNET<br />Shielded RS232 cable serial link by modem | Maximum Number of Connected Devices | Ethernet <64 star<br />Serial link by modem <2 star |
Maximum cable distance between devices | 328.08 ft (100 m) between terminal device and hubs ETHERNET | Ethernet service | Inter-PLC communication in Uni-Telway or Modbus TCP/IP<br />Diagnostics module<br />Download of Uni-Telway PL7 applications<br />Remote terminal<br />Scanned inputs/outputs service performed<br />Adjustment, debugging and modifications to the program |
Supply voltage limits | 19.2…30 V DC | Input overvoltage protection | 34 V |
Power dissipation in W | 2.4…4 W | Electrical connection | 1 connector mini DIN for terminal port (TER address)<br />1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link<br />1 connector SUB-D 9 for RS232 serial link (Modem)<br />1 connector RJ45<br />Screw terminal block for connecting to the external power supply |
Local signalling | for RUN 1 LED<br /> for ERR 1 LED<br /> for RX/TX 1 LED | Current consumption | 100 mA 24 V DC<br />50...200 mA 24 V DC |
Mounting Support | Mounting plate | Width | 1.57 in (39.83 mm) |
Height | 6.0 in (151.5 mm) | Depth | 4.6 in (116.7 mm) |
Net Weight | 0.62 lb(US) (0.28 kg) | Immunity to microbreaks | 1 ms |
Standards | UL 508<br />IEC 1000-4-2 level 3<br />IEC 1000-4-3 level 3<br />IEC 1000-4-4 level 3<br />IEC 1000-4-5<br />ANSI/IEEE Std 802.3 (4th edition 1993-07-08)<br />ISO/IEC 8802-3<br />IEC 61131-2<br />CSA C22.2<br />IEC 68-2-27, EA tests<br />EN/IEC 50082-1<br />IEC 1000-4-12<br />IEC 68-2-6, FC test | Product Certifications | RINA<br />GOST<br />DNV<br />LR<br />RRS<br />BV<br />GL |
marking | CE | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
Ambient air temperature for storage | -13…158 °F (-25…70 °C) IEC 61131-2 | Relative Humidity | 5…95 % without condensation for storage IEC 61131-2<br />10…95 % without condensation for operation |
Operating altitude | 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
