Product Model

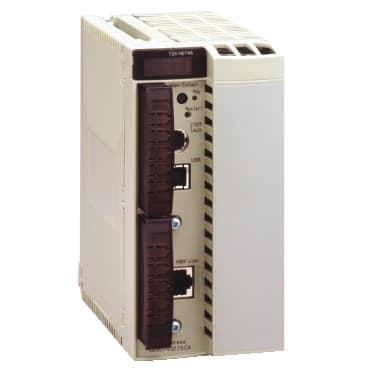

TSXH5744M
Selling Points
- 1High Performance: The TSXH5744M features a high-performance dual-processor configuration, ensuring robust and reliable operation in hot standby architectures.
- 2Advanced Software: Compatible with Unity Pro software (version u 3.1), offering advanced control and automation capabilities.
- 3Redundant Design: Designed with a redundant coprocessor, providing continuous operation even in case of component failure.
- 4Flexible I/O Capacity: Supports up to 2048 discrete I/O and 256 analogue I/O, catering to diverse industrial control needs.
- 5Comprehensive Signaling: Equipped with multiple LEDs for local signalling, including RUN, ERR, I/O, TER, and Ethernet diagnostics for real-time monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity Hot Standby processor |
Software Designation | Unity Pro | Number of racks | 1 6/8/12 slots |
Number of slots | 6<br />12<br />8 | Discrete I/O processor capacity | 2048 I/O |
Analogue I/O processor capacity | 256 I/O | Number of application specific channel | 64 |
Number of process control channel | 20 up to 60 simple loops | Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s)<br />Ethernet TCP/IP RJ45<br />USB port USB type A12 Mbit/s) |
Port Ethernet | 10BASE-T/100BASE-TX | Communication module processor capacity | 4 |
Memory description | Internal RAM (with PCMCIA card) 2048 kB program<br />Internal RAM (with PCMCIA card) 440 kB data<br />Internal RAM (without PCMCIA card) 440 kB program and data<br />PCMCIA card 16384 kB additional data storage | Maximum size of object areas | 32464 %MWi internal words located internal data<br />32760 %KWi constant words located internal data<br />440 kB data exchanged via CPU Sync link<br />8056 %Mi located internal bits<br />Unlimited (DFB and EFB function blocks) unlocated internal data<br />Unlimited (elementary and derived data) unlocated internal data |
Application structure | 1 master task | Execution time per instruction | 0.039...0.057 µs Boolean without PCMCIA card<br />0.048...0.057 µs Boolean with PCMCIA card<br />0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card<br />0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card<br />0.055...0.063 µs floating points with PCMCIA card<br />0.055...0.063 µs floating points without PCMCIA card |
Number of instructions per ms | 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />15.75 Kinst/ms 100 % Boolean with PCMCIA card<br />15.75 Kinst/ms 100 % Boolean without PCMCIA card | System overhead | 1 ms master task |
marking | CE | Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for collision detection (COL) 1 LED (red)<br /> for Ethernet TCP/IP port fault (ERR) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow)<br /> for Ethernet link diagnostics (STS) 1 LED (yellow)<br /> for reception activity (RX) 1 LED (yellow)<br /> for transmission activity (TX) 1 LED (yellow) |
Current consumption | 1880 mA 5 V DC | Module format | Double |
Net Weight | 1.34 lb(US) (0.61 kg) | Standards | CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group C<br />73/23/EEC<br />IEC 61131-2<br />92/31/EEC<br />89/336/EEC<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group D<br />UL 508<br />93/68/EEC |
Product Certifications | RINA<br />BV<br />DNV<br />GL<br />LR<br />RMRS<br />ABS | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
