Product Model

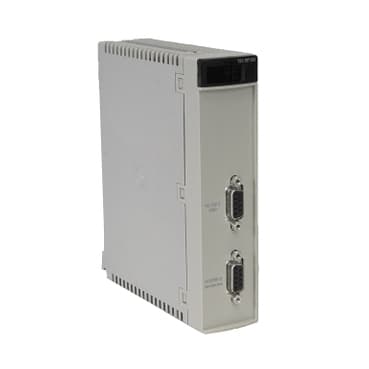

TSXIBY100
Selling Points
- 1Industrial-grade reliability: Designed for demanding industrial environments.
- 2High-speed communication: Transmits data at 500 kbit/s with NRZ mode.
- 3Versatile connectivity: Supports InterBus loop, RS485 remote bus, and TTL local bus.
- 4Scalable architecture: Supports up to 254 remote bus terminals and 512 slaves.
- 5Comprehensive signaling: Includes 6 LEDs for local signaling and pre-processing capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | InterBus bus module |
Product Specific Application | For Premium PLC | Structure type | Industrial bus |
Number of tap-offs | <= 16 remote bus | Physical interface | Combined interface InterBus loop<br />RS485 remote bus<br />RS485 with 24 V DC in cable installation remote bus<br />TTL local bus |
Method of access | Master/slave generation 4 | Mode of Transmission | NRZ |
Transmission Rate | 500 kbit/s | Transmission support medium | 2 x 1.5 mm² InterBus loop<br />Fiber optic remote bus<br />Infrared remote bus<br />Rotating collector remote bus<br />Twisted pair remote bus<br />Wave guide rail remote bus |
Maximum length of segment | 656.2 ft (200 m) InterBus loop<br />1312.3 ft (400 m) remote bus | Maximum cable distance between devices | 4.9 ft (1.5 m) local bus between 2 bus terminals modules<br />4.9 ft (1.5 m) local bus between bus terminal module and first module<br />32.8 ft (10 m) InterBus loop between 2 bus terminals modules<br />32.8 ft (10 m) local bus between bus terminal module and last module<br />328.08 ft (100 m) InterBus loop between bus terminal module and last module<br />41994.8 ft (12800 m) remote bus between module and last station on the remote bus<br />65.6 ft (20 m) InterBus loop between bus terminal module and first module<br />1312.3 ft (400 m) remote bus between 2 bus terminals modules<br />1312.3 ft (400 m) remote bus between module and the first bus terminal module<br />164.04 ft (50 m) installation remote bus between 2 bus terminals modules<br />164.04 ft (50 m) between bus terminal module and first module<br />164.04 ft (50 m) installation remote bus between bus terminal module and last module |
Number of loops | 1 InterBus loop | Number of bus terminals module | 254 remote bus |
Number of server device(s) | 512 remote bus<br />63 InterBus loop<br />8 local bus | Maximum input/output number | Remote bus 4096 3872 3872 |
Communication service | Bus operating modes management<br />Cyclical variable exchange<br />Logical addressing<br />PMS messaging<br />Pre-processing<br />Segmentation<br />Implicit exchange of data process 242 %IW 242 %QW | Local signalling | 6 LEDs |
Electrical connection | 1 connector female SUB-D 9 RS232 CMD tool software support<br />1 connector female SUB-D 9 RS485 Interbus link | Current consumption | 500 mA 5 V DC |
Module format | Standard | Net Weight | 0.71 lb(US) (0.32 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 5…95 % without condensation | Operating altitude | 0...6561.68 ft (0...2000 m) |
IP Degree of Protection | IP20 |
Specifications may be subject to change without notice
