Product Model

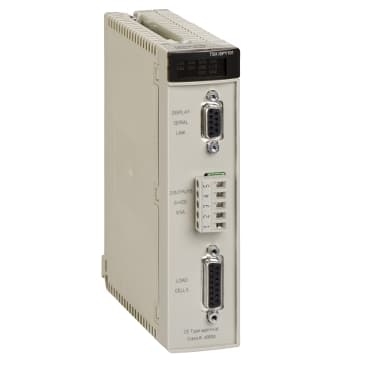

TSXISPY121
Selling Points
- 1High-Speed Weighing: Measures 50 times per second for precise and rapid weight detection.
- 2Compact Design: Compact size makes it easy to integrate into various industrial settings.
- 3Reliable Power: Operates on 10 V DC, ensuring stable and consistent performance.
- 4Industrial Grade: Designed for robust industrial applications with high reliability.
- 5Easy Integration: Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | ISP Plus weighing module |
Kit composition | TSXISPY101 module<br />TSXXBTN410 weight indicator Magelis | Number of measurement input | 1 |
Resolution | 1048576 points | Analogue input resolution | 20 bits |
Measuring rate | 50 measurements per second | input impedance | > 1 MOhm |
Input compatibility | Load cell 1…8 350 Ohm yes <984.3 ft (300 m) | Sensor power supply | 10 V DC |
Output compatibility | Discrete reflex 2 positive | Discrete output voltage | 24 V DC |
Discrete output current | 500 mA | Response time on output | 1 ms |
Transmission rate | 9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator | Voltage division | 1 µV |
Maximum cable distance between devices | 9.8 ft (3 m) for module/weight indicator | Electrical connection | 1 connector screw terminal block for connecting 2 discrete reflex<br />1 female connector SUB-D 15 for the indicator input<br />1 female connector SUB-D 9 for RS485 serial link to the weight indicator |
marking | CE | Current consumption | 145 mA 24 V rack<br />150 mA 5 V DC |
Module format | Standard | Net Weight | 2.25 lb(US) (1.02 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Product Certifications | SDM No 97.06 |
Specifications may be subject to change without notice
