Product Model

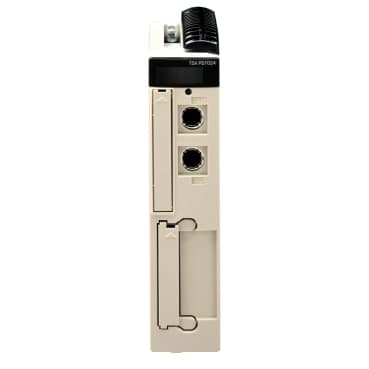

TSXP57103MC
Selling Points
- 1Consumes 440 mA at 5 V DC, making it suitable for systems requiring minimal power consumption.
- 2Multiple LED indicators for status monitoring, including RUN, ERR, I/O, and TER LEDs.
- 3Part of the Schneider Electric product line, known for its reliability and versatility in industrial applications.
- 4Comes with a 2-year MRO Electric and Supply warranty for peace of mind.
- 5Includes free shipping when purchased from MRO Electric and Supply, making the purchase process convenient and cost-effective.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Single-format PL7 processor |
Software Designation | PL7 Junior/Pro | Number of racks | 2 12 slots<br />4 4/6/8 slots |
Number of slots | 24<br />16<br />32 | Discrete I/O processor capacity | 512 I/O |
Analogue I/O processor capacity | 24 I/O | Number of application specific channel | 8 |
Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s) | Communication module processor capacity | 1 network module<br />2 AS-Interface bus modules<br />1 CANopen |
Memory description | Internal RAM (with PCMCIA card) 32 Kwords data<br />Internal RAM (without PCMCIA card) 32 Kwords program and data<br />PCMCIA card 128 Kwords additional data storage<br />PCMCIA card 64 Kwords program | Maximum size of object areas | 30.5 %MWi internal words located internal data<br />32 %KWi constant words located internal data<br />4096 %Mi located internal bits |
Application structure | 1 master task<br />1 fast task<br />32 event tasks | Execution time per instruction | 0.5 µs Boolean without PCMCIA card<br />0.6 µs Boolean with PCMCIA card<br />0.62 µs word or fixed-point arithmetic without PCMCIA card<br />0.87 µs word or fixed-point arithmetic with PCMCIA card<br />44 µs floating points with PCMCIA card<br />44 µs floating points without PCMCIA card |
Number of instructions per ms | 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />1.18 Kinst/ms 100 % Boolean with PCMCIA card<br />1.52 Kinst/ms 100 % Boolean without PCMCIA card | System overhead | 0.8 ms fast task<br />1.5 ms master task |
marking | CE | Local signalling | for processor running (RUN) 1 LED (green)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on the terminal port (TER) 1 LED (yellow) |
Current consumption | 440 mA 5 V DC | Module format | Standard |
Net Weight | 0.84 lb(US) (0.38 kg) | Standards | 89/336/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 142<br />92/31/EEC<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group A<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC |
Product Certifications | RINA<br />RMRS<br />DNV<br />LR<br />BV<br />GL<br />ABS | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | Conformal coating Humiseal 1A33<br />TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
