Product Model

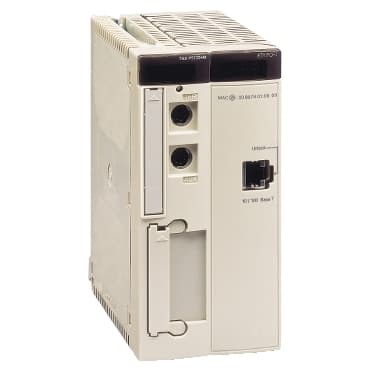

TSXP57254M
Selling Points
- 1Equipped with non-isolated serial link (RS485) and Ethernet TCP/IP RJ45 connectors for seamless communication.
- 2Handles up to 80 analog I/O, making it suitable for precise control in applications like temperature monitoring and pressure control.
- 3Includes various diagnostic LEDs providing real-time feedback on system performance, transmission, reception, and Ethernet link health.
- 4Supports a flexible application structure, enhancing its versatility in complex control systems.
- 5Comes with a 2-year warranty from MRO Electric and Supply, ensuring reliable performance and peace of mind for customers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity processor |
Software Designation | Unity Pro | Number of racks | 16 4/6/8 slots<br />8 12 slots |
Number of slots | 96<br />64<br />128 | Discrete I/O processor capacity | 1024 I/O |
Analogue I/O processor capacity | 80 I/O | Number of application specific channel | 24 |
Number of process control channel | 10 up to 30 simple loops | Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2 kbit/s)<br />Fipio manager (127 agents) SUB-D 9 |
Communication module processor capacity | 4<br />1 | Memory description | Internal RAM (with PCMCIA card) 192 kB data<br />Internal RAM (with PCMCIA card) 768 kB program<br />Internal RAM (without PCMCIA card) 192 kB program and data<br />PCMCIA card 16384 kB additional data storage |
Maximum size of object areas | 64 %KWi constant words located internal data<br />64 %MWi internal words located internal data<br />64 kB (DFB and EFB function blocks) unlocated internal data<br />64 kB (elementary and derived data) unlocated internal data<br />8132 %Mi located internal bits | Application structure | 1 master task<br />1 fast task<br />64 event tasks |
Execution time per instruction | 0.19 µs Boolean without PCMCIA card<br />0.25 µs word or fixed-point arithmetic without PCMCIA card<br />1.75...2.6 µs floating points with PCMCIA card<br />1.75...2.6 µs floating points without PCMCIA card<br />0.21 µs Boolean with PCMCIA card<br />0.42 µs word or fixed-point arithmetic with PCMCIA card | Number of instructions per ms | 2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />3.7 Kinst/ms 100 % Boolean with PCMCIA card<br />3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />4.76 Kinst/ms 100 % Boolean without PCMCIA card |
System overhead | 0.3 ms fast task<br />1 ms master task | marking | CE |
Local signalling | for processor running (RUN) 1 LED (green)<br /> for activity on Fipio bus (FIP) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow) | Current consumption | 930 mA 5 V DC |
Module format | Double | Net Weight | 1.385 lb(US) (0.628 kg) |
Standards | CSA C22.2 No 213 Class I Division 2 Group B<br />73/23/EEC<br />CSA C22.2 No 142<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group D<br />92/31/EEC<br />89/336/EEC<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group C<br />IEC 61131-2 | Product Certifications | GL<br />ABS<br />BV<br />LR<br />RINA<br />RMRS<br />DNV |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
