Product Model

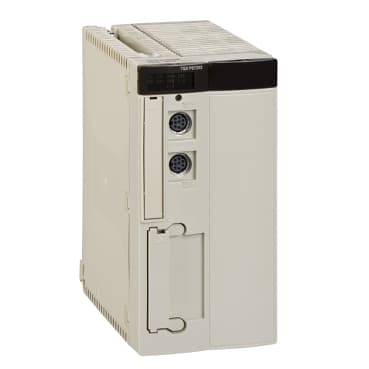

TSXP57353AMC
Selling Points
- 1Advanced double-format PL7 processor for high-speed processing.
- 2Reliable operation in harsh industrial environments with IP20 rating.
- 3Supports a wide range of I/O modules and communication protocols.
- 4Designed for distributed control architectures with improved system scalability.
- 5Includes advanced diagnostic and troubleshooting features for minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Double-format PL7 processor |
Software Designation | PL7 Junior/Pro | Number of racks | 16 4/6/8 slots<br />8 12 slots |
Number of slots | 64<br />96<br />128 | Discrete I/O processor capacity | 1024 I/O |
Analogue I/O processor capacity | 128 I/O | Number of application specific channel | 32 |
Number of process control channel | 15 up to 45 simple loops | Integrated connection type | Fipio manager (127 agents) SUB-D 9<br />Non isolated serial link 2 female mini DIN19.2/115 kbit/s) |
Communication module processor capacity | 2 fieldbus modules (1 if CANopen used)<br />8 AS-Interface bus modules<br />1 CANopen<br />3 network module | Memory description | Internal RAM (with PCMCIA card) 96 Kwords data<br />Internal RAM (without PCMCIA card) 80 Kwords program and data<br />PCMCIA card 2688 Kwords additional data storage<br />PCMCIA card 384 Kwords program |
Maximum size of object areas | 16384 %Mi located internal bits<br />30.5 %MWi internal words located internal data<br />32 %KWi constant words located internal data | Application structure | 64 event tasks<br />1 fast task<br />1 master task |
Execution time per instruction | 2.6 µs floating points with PCMCIA card<br />0.12 µs Boolean without PCMCIA card<br />0.17 µs Boolean with PCMCIA card<br />0.17 µs word or fixed-point arithmetic without PCMCIA card<br />0.33 µs word or fixed-point arithmetic with PCMCIA card<br />2.5 µs floating points without PCMCIA card | Number of instructions per ms | 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />4.49 Kinst/ms 100 % Boolean with PCMCIA card<br />4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />6.57 Kinst/ms 100 % Boolean without PCMCIA card |
System overhead | 0.29 ms fast task<br />1.15 ms master task | marking | CE |
Local signalling | for processor running (RUN) 1 LED (green)<br /> for activity on Fipio bus (FIP) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on the terminal port (TER) 1 LED (yellow) | Current consumption | 1060 mA 5 V DC |
Module format | Double | Net Weight | 1.23 lb(US) (0.56 kg) |
Standards | 73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />92/31/EEC<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />IEC 61131-2<br />93/68/EEC<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group D | Product Certifications | ABS<br />LR<br />RINA<br />BV<br />DNV<br />RMRS<br />GL |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | Conformal coating Humiseal 1A33<br />TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
