Product Model

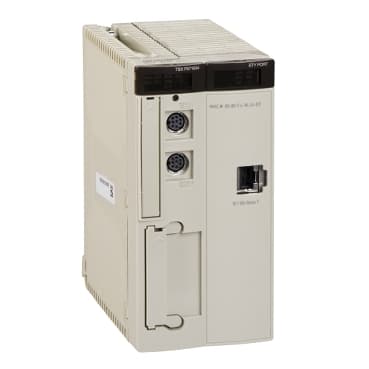

TSXP57354MC
Selling Points
- 1High-performance power supply with 54A output.
- 2Compact design for easy integration into systems.
- 3Wide input voltage range for flexibility.
- 4Enhanced reliability with robust construction.
- 5Compliant with industry standards for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity processor |
Software Designation | Unity Pro | Number of racks | 16 4/6/8 slots<br />8 12 slots |
Number of slots | 128<br />96<br />64 | Discrete I/O processor capacity | 1024 I/O |
Analogue I/O processor capacity | 128 I/O | Number of application specific channel | 32 |
Number of process control channel | 15 up to 45 simple loops | Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2/115 kbit/s)<br />Fipio manager (127 agents) SUB-D 9 |
Communication module processor capacity | 1<br />3<br />8 | Memory description | Internal RAM (with PCMCIA card) 1792 kB program<br />Internal RAM (with PCMCIA card) 208 kB data<br />Internal RAM (without PCMCIA card) 208 kB program and data<br />PCMCIA card 16384 kB additional data storage |
Maximum size of object areas | 16384 %Mi located internal bits<br />64 %KWi constant words located internal data<br />64 %MWi internal words located internal data<br />64 kB (DFB and EFB function blocks) unlocated internal data<br />64 kB (elementary and derived data) unlocated internal data | Application structure | 64 event tasks<br />1 master task<br />1 fast task |
Execution time per instruction | 0.12 µs Boolean without PCMCIA card<br />0.17 µs Boolean with PCMCIA card<br />0.17 µs word or fixed-point arithmetic without PCMCIA card<br />0.32 µs word or fixed-point arithmetic with PCMCIA card<br />1.75...3 µs floating points with PCMCIA card<br />1.75...3 µs floating points without PCMCIA card | Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />4.59 Kinst/ms 100 % Boolean with PCMCIA card<br />5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />6.72 Kinst/ms 100 % Boolean without PCMCIA card |
System overhead | 0.35 ms fast task<br />1 ms master task | marking | CE |
Local signalling | for processor running (RUN) 1 LED (green)<br /> for activity on Fipio bus (FIP) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow) | Current consumption | 1180 mA 5 V DC |
Module format | Double | Net Weight | 1.23 lb(US) (0.56 kg) |
Standards | UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group C<br />93/68/EEC<br />73/23/EEC<br />IEC 61131-2<br />92/31/EEC<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group D | Product Certifications | BV<br />DNV<br />GL<br />LR<br />RINA<br />ABS<br />RMRS |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | TC<br />Conformal coating Humiseal 1A33 | IP Degree of Protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
