Product Model

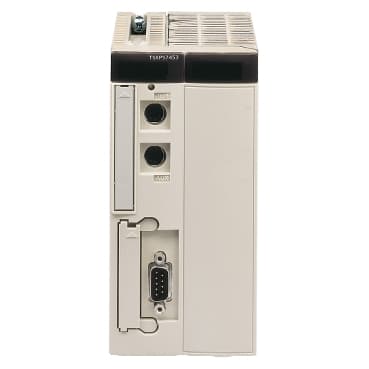

TSXP574823AM
Selling Points
- 1High-performance power distribution for critical systems.
- 2Advanced thermal management for extended lifespan.
- 3Compact design for space-efficient installations.
- 4Robust construction for reliable operation in harsh environments.
- 5Easy integration with existing Schneider systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Double-format PL7 processor |
Software Designation | PL7 Junior/Pro | Concept | Transparent Ready |
Number of racks | 16 4/6/8 slots<br />8 12 slots | Number of slots | 128<br />96<br />64 |
Discrete I/O processor capacity | 2040 I/O | Analogue I/O processor capacity | 256 I/O |
Number of application specific channel | 64 | Number of process control channel | 20 up to 60 simple loops |
Integrated connection type | Fipio manager (127 agents) SUB-D 9<br />Ethernet TCP/IP RJ4510/100 Mbit/s)<br />Non isolated serial link 2 female mini DIN19.2/115 kbit/s) | Communication module processor capacity | 2 fieldbus modules (1 if CANopen used)<br />8 AS-Interface bus modules<br />1 CANopen<br />4 network module |
Memory description | Internal RAM (with PCMCIA card) 176 Kwords data<br />Internal RAM (without PCMCIA card) 96 Kwords program and data<br />PCMCIA card 2048 Kwords additional data storage<br />PCMCIA card 992 Kwords program | Maximum size of object areas | 30.5 %MWi internal words located internal data<br />32 %KWi constant words located internal data<br />32768 %Mi located internal bits |
Application structure | 1 fast task<br />1 master task<br />64 event tasks | Execution time per instruction | 0.06 µs Boolean with PCMCIA card<br />0.06 µs Boolean without PCMCIA card<br />0.08 µs word or fixed-point arithmetic with PCMCIA card<br />0.08 µs word or fixed-point arithmetic without PCMCIA card<br />1.7 µs floating points with PCMCIA card<br />1.7 µs floating points without PCMCIA card |
Number of instructions per ms | 13.82 Kinst/ms 100 % Boolean with PCMCIA card<br />13.82 Kinst/ms 100 % Boolean without PCMCIA card<br />8.8 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />8.8 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | System overhead | 0.22 ms fast task<br />1.15 ms master task |
marking | CE | Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for activity on Fipio bus (FIP) 1 LED (red)<br /> for collision detection (COL) 1 LED (red)<br /> for Ethernet TCP/IP port fault (ERR) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on the terminal port (TER) 1 LED (yellow)<br /> for Ethernet link diagnostics (STS) 1 LED (yellow)<br /> for reception activity (RX) 1 LED (yellow)<br /> for transmission activity (TX) 1 LED (yellow) |
Current consumption | 1440 mA 5 V DC | Module format | Double |
Net Weight | 1.70 lb(US) (0.77 kg) | Standards | 92/31/EEC<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group B<br />93/68/EEC<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group A<br />73/23/EEC |
Product Certifications | RMRS<br />RINA<br />DNV<br />BV<br />GL<br />LR<br />ABS | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
