Product Model

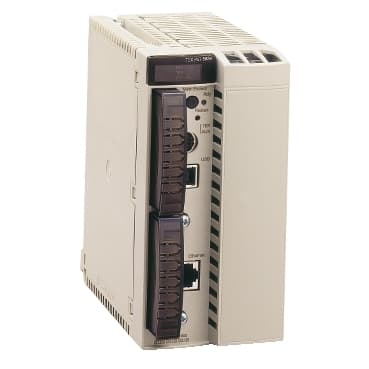

TSXP575634MC
Selling Points
- 1High-performance power supply with 575V output.
- 2Compact design for easy integration in various systems.
- 3Meets stringent safety standards for reliable operation.
- 4Suitable for industrial and commercial use cases.
- 5Durable construction with long-lasting components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity processor |
Software Designation | Unity Pro | Concept | Transparent Ready |
Number of racks | 16 4/6/8 slots<br />8 12 slots | Number of slots | 128<br />96<br />64 |
Discrete I/O processor capacity | 2040 I/O | Analogue I/O processor capacity | 512 I/O |
Number of application specific channel | 64 | Number of process control channel | 30 up to 90 simple loops |
Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s)<br />Ethernet TCP/IP RJ45<br />USB port12 Mbit/s) | Port Ethernet | 10BASE-T/100BASE-TX |
Communication module processor capacity | 1<br />3<br />8<br />5 | Memory description | Internal RAM (with PCMCIA card) 1024 kB data<br />Internal RAM (with PCMCIA card) 7168 kB program<br />Internal RAM (without PCMCIA card) 1024 kB program and data<br />PCMCIA card 16384 kB additional data storage |
Maximum size of object areas | 128 %MWi internal words located internal data<br />32768 %Mi located internal bits<br />64 %KWi constant words located internal data<br />Unlimited (DFB and EFB function blocks) unlocated internal data<br />Unlimited (elementary and derived data) unlocated internal data | Application structure | 128 event tasks<br />1 master task<br />4 auxiliary tasks<br />1 fast task<br />32 timers |
Execution time per instruction | 0.0375...0.045 µs Boolean with PCMCIA card<br />0.0375...0.045 µs Boolean without PCMCIA card<br />0.045...0.06 µs word or fixed-point arithmetic with PCMCIA card<br />0.045...0.06 µs word or fixed-point arithmetic without PCMCIA card<br />0.48...0.56 µs floating points with PCMCIA card<br />0.48...0.56 µs floating points without PCMCIA card | Number of instructions per ms | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />20.26 Kinst/ms 100 % Boolean with PCMCIA card<br />20.26 Kinst/ms 100 % Boolean without PCMCIA card |
System overhead | 0.07 ms fast task<br />1 ms master task | marking | CE |
Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for collision detection (COL) 1 LED (red)<br /> for Ethernet TCP/IP port fault (ERR) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow)<br /> for Ethernet link diagnostics (STS) 1 LED (yellow)<br /> for reception activity (RX) 1 LED (yellow)<br /> for transmission activity (TX) 1 LED (yellow) | Current consumption | 1680 mA 5 V DC |
Module format | Double | Net Weight | 1.34 lb(US) (0.61 kg) |
Standards | UL 508<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group C<br />93/68/EEC<br />89/336/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />CSA C22.2 No 142<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group D | Product Certifications | RINA<br />BV<br />GL<br />LR<br />DNV<br />RMRS<br />ABS |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | Conformal coating Humiseal 1A33<br />TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
