Product Model

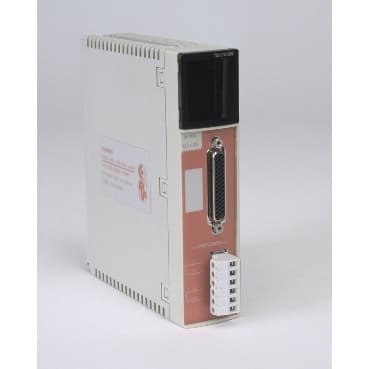

TSXPAY262
Selling Points
- 1Ensures safe operation in industrial environments with robust safety protocols.
- 2Compatible with standard 24V DC power supply, reducing installation complexity.
- 3Compact format for easy integration into existing systems, minimizing space requirements.
- 4Operates at less than 5W, reducing energy costs and environmental impact.
- 5Designed for seamless integration with Modicon Premium systems, enhancing overall system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Preventa safety module |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
Activation threshold | < 20 V | Short-circuit protection | 1 A gG external IEC 947-5-1 on power supply<br />4 A gG external IEC 947-5-1 on safety relay outputs |
Isolation voltage | 4000 V III 2 | Discrete input number | 1 double or single contact selection input IEC 1131 Type 1<br />1 feedback loop input IEC 1131 Type 1<br />1 reset PB input IEC 1131 Type 1<br />1 reset PB monitoring input IEC 1131 Type 1<br />12 emergency stop or limit switch discrete inputs IEC 1131 Type 1 |
Discrete input logic | Positive | Inrush current | 0.5 A |
Isolation between input and earth | 500 Vrms 50/60 Hz 60 s | Maximum power dissipation in W | 5 W |
Safety outputs | 2 NO safety relay AGCDO gold plated volt free output | [Ue] rated operational voltage | 17...127 V DC relay output<br />19...250 V AC relay output |
Rated power in VA | 120 VA 48 V AC-15 inductive<br />280 VA 110 V AC-15 inductive<br />550 VA 220 V AC-15 inductive<br />60 VA 24 V AC-15 inductive | Rated power in W | 60 W 24 V DC-13 inductive 100 ms |
[Ithe] conventional enclosed thermal current | 2.5 A | Minimum output current | 30 mA |
Response time on output | < 12 ms | Isolation between output and earth | 300 V DIN VDE 0110 part 2<br />1500 Vrms 50/60 Hz 60 s |
Safety acquisition | Read feedback loop<br />Monitor external power supply of the module<br />Read enable inputs<br />Read the safety outputs control<br />Read status of the 24 inputs | Local signalling | for diagnostic of safety system 28 LEDs |
Electrical connection | 1 connector removable screw terminal block 6 pins for connecting the safety output<br />1 connector SUB-D 44 pins for connecting the safety system input | Cable cross section | 0.0003…0.004 in² (0.2…2.5 mm²) without cable end safety output circuit<br />0.002 in² (1.5 mm²) with cable end safety output circuit |
Current consumption | < 150 mA 5 V DC<br /><= 200 mA 24 V DC | Module format | Standard |
Net Weight | 0.95 lb(US) (0.43 kg) | Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) without fan<br />32…140 °F (0…60 °C) with fan module |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | IP degree of protection | IP20 conforming to IEC 60529 |
Standards | EN 954 machine safety parts of control systems<br />EN/IEC 60204-1 machine electrical equipment<br />EN/IEC 61131-2 specific requirements (PLC)<br />EN/ISO 12100 machine electrical equipment<br />ISO 13850 emergency stop equipment<br />UL 508 specific requirements (PLC)<br />ISO 13849-1 category 4 machine safety parts of control systems<br />IEC 61508 SIL 3 machine safety parts of control systems<br />CSA C22.2 specific requirements (PLC) | Product Certifications | BG<br />CSA<br />UL |
Specifications may be subject to change without notice
