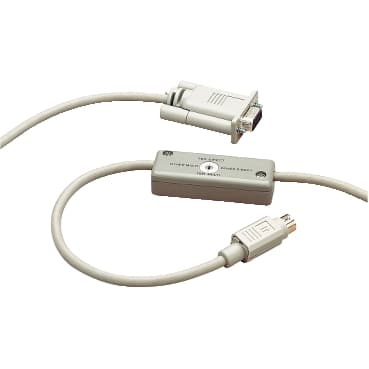

Product Model
TSXPCX1031
Selling Points
- 1Robust and Reliable Communication: Facilitates seamless communication between various automation platforms and terminals.
- 2Versatile Compatibility: Compatible with Magelis GTO, TSX Micro, Twido, Modicon Premium automation platform, and Magelis XBT series.
- 3Durable Design: Engineered for high durability with a compact design and 2.5-meter cable length.
- 4Environmental Compliance: Classified as a Green Premium product, adhering to RoHS requirements and featuring an environmental profile that requires no specific recycling actions.
- 5Comprehensive Kit: Includes a SUB-D 9-way female to 25-way male adaptor for extra versatility in integration with additional Schneider Electric devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
accessory / separate part category | Connection accessories | accessory / separate part type | Connecting cable |
Accessory / separate part designation | RS232 connecting cable | Accessory / separate part destination | DTE terminal port |
Cable length | 8.2 ft (2.5 m) | Range Compatibility | Harmony GTO<br />Twido<br />Harmony XBT<br />TSX Micro<br />Modicon Premium automation platform |
Electrical connection | 1 female connector mini DIN 8<br />1 female connector SUB-D 9 | Kit composition | 1 SUB-D 9-way female/25-way male adaptor<br />1 connecting cable |
communication port protocol | Modbus<br />Uni-Telway<br />Character mode | Physical interface | RS485<br />RS232 |
Net Weight | 0.37 lb(US) (0.17 kg) |
Specifications may be subject to change without notice
