Product Model

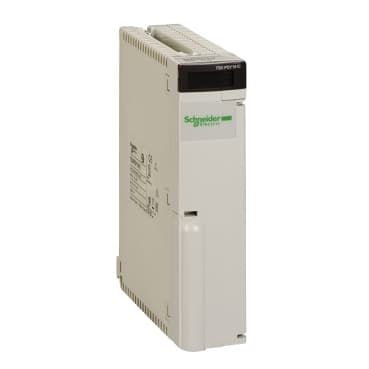

TSXPSY1610M
Selling Points
- 1High-performance power supply with 1610W output.
- 2Compact design for easy integration in various systems.
- 3Wide input voltage range for flexibility in different environments.
- 4High efficiency and low noise operation for optimal performance.
- 5Robust build quality and long lifespan for reliable service.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Power supply module |
Primary voltage | 24 V DC 19.2...30 V | Input current | <= 1500 mA 24 V |
Inrush current | 100 A 24 V | I²t on activation | 12.5 A².s |
It on activation | 0.2 A.s | Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Total useful secondary power | 30 W | Secondary power | 15 W 24 V DC<br />15 W 5 V DC |
Current at secondary voltage | 0.6 A 24 V DC relay power supply<br />3 A 5 V DC | marking | CE |
Local signalling | for presence of voltages (OK) 1 LED (green)<br /> for battery fault (BAT) 1 LED (red) | Module format | Standard |
Net Weight | 1.19 lb(US) (0.54 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 2000 V primary/earth<br />2000 V primary/secondary | Standards | 93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group C<br />IEC 61131-2<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />89/336/EEC |
Product Certifications | RMRS<br />LR<br />ABS<br />RINA<br />BV<br />GL<br />DNV | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
