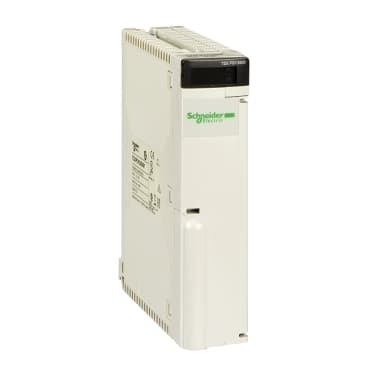

Product Model
TSXPSY2600M
Selling Points
- 1Provides a total useful secondary power of 26 W with outputs of 25 W for 5 V DC and 15 W for 24 V DC.
- 2Equipped with short-circuit, overvoltage, and overload protection for the secondary circuit, ensuring device safety.
- 3Operates with a primary voltage range of 100 to 240 V AC (85 to 264 V) and network frequency of 50/60 Hz.
- 4Includes an internal fuse of 4 A with a 5 x 20 mm time-delayed primary circuit for added protection.
- 5CE-marked, ensuring compliance with European safety and environmental standards, and backed by a 2-year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Power supply module |
Primary voltage | 100...240 V AC 85...264 V | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Input current | 300 mA 240 V<br />500 mA 100 V |
Inrush current | 37 A 100 V<br />75 A 240 V | I²t on activation | 0.63 A².s 100 V<br />2.6 A².s 240 V |
It on activation | 0.034 A.s 100 V<br />0.067 A.s 240 V | Protection type | Internal fuse 4 A 5 x 20 mm time-delayed primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Total useful secondary power | 26 W | Secondary power | 15 W 24 V DC<br />25 W 5 V DC |
Current at secondary voltage | 0.5 A 24 V DC sensor power supply<br />0.6 A 24 V DC relay power supply<br />5 A 5 V DC | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
marking | CE | Local signalling | for presence of sensor voltage (24V) 1 LED (green)<br /> for presence of voltages (OK) 1 LED (green)<br /> for battery fault (BAT) 1 LED (red) |
Module format | Standard | Net Weight | 1.12 lb(US) (0.51 kg) |
Immunity to microbreaks | 10 ms | Dielectric strength | 2000 V primary/earth<br />2000 V primary/secondary |
Standards | CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group A<br />IEC 61131-2<br />UL 508<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />92/31/EEC<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C | Product Certifications | RMRS<br />BV<br />RINA<br />GL<br />ABS<br />DNV<br />LR |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
