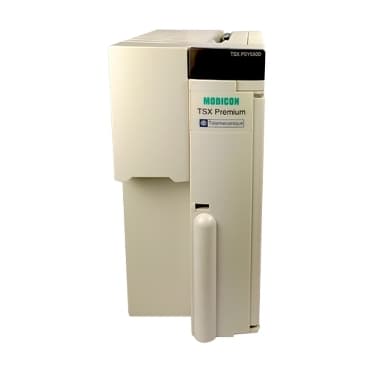

TSXPSY5500M
Selling Points
- 1Industry-leading power protection with 5500VA capacity.
- 2Advanced battery management for extended runtime.
- 3High efficiency design with low energy consumption.
- 4Compact and modular architecture for easy integration.
- 5Real-time monitoring and control via intuitive software.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Power supply module |
Primary voltage | 100...120 V AC 85...140 V<br />200...240 V AC 190...264 V | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Input current | 1700 mA 100 V<br />500 mA 240 V |
Inrush current | 38 A 100 V<br />38 A 240 V | I²t on activation | 2 A².s 240 V<br />4 A².s 100 V |
It on activation | 0.11 A.s 100 V<br />0.11 A.s 240 V | Protection type | Internal fuse 4 A 5 x 20 mm time-delayed primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Total useful secondary power | 50 W | Secondary power | 19 W 24 V DC<br />35 W 5 V DC |
Current at secondary voltage | 0.8 A 24 V DC relay power supply<br />0.8 A 24 V DC sensor power supply<br />7 A 5 V DC | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
marking | CE | Local signalling | for presence of sensor voltage (24V) 1 LED (green)<br /> for presence of voltages (OK) 1 LED (green)<br /> for battery fault (BAT) 1 LED (red) |
Module format | Double | Net Weight | 1.37 lb(US) (0.62 kg) |
Immunity to microbreaks | 10 ms | Dielectric strength | 2000 V primary/earth<br />2000 V primary/secondary |
Standards | 73/23/EEC<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group C<br />92/31/EEC<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group A<br />IEC 61131-2<br />89/336/EEC<br />93/68/EEC | Product Certifications | RMRS<br />LR<br />ABS<br />GL<br />RINA<br />DNV<br />BV |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
Protective treatment | TC | IP Degree of Protection | IP20 |
Pollution degree | 2 |
