Product Model

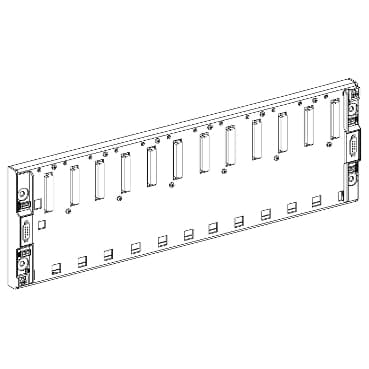

TSXRKY12EX
Selling Points
- 1Easily configure multiple racks with the TSXRKY12EX's extendable design.
- 2Accommodate up to 12 modules in a single rack.
- 3Ensures reliable operation in industrial environments with IP20 protection.
- 4Built with high-quality components from Schneider Electric's Modicon Premium series.
- 5Suitable for various industrial automation applications requiring flexible rack configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Extendable rack |
Product Specific Application | For multi-racks configuration | Number of slots | 12 |
Product Compatibility | TSXP57 processor<br />I/O module<br />Specific application module<br />TSXPSY power supply | Electrical connection | 2 connectors female SUB-D 9 remote connection of bus X) |
Fixing mode | By 4 M6 screws (panel)<br />By clips (35 mm symmetrical DIN rail) | marking | CE |
Net Weight | 5.16 lb(US) (2.34 kg) | Standards | CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group D<br />92/31/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />93/68/EEC<br />89/336/EEC<br />CSA C22.2 No 142<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group C<br />73/23/EEC<br />IEC 61131-2 |
Product Certifications | ABS<br />GL<br />DNV<br />LR<br />BV<br />RINA<br />RMRS | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
