Product Model
TSXSCMCN050
Selling Points
- 1Designed for PLe and SIL3 compliance to ensure high safety standards.
- 2Modular safety controller for monitoring multiple safety functions.
- 3Reduces time-to-market with pre-designed safety solutions.
- 4Increases profitability with standalone or embedded safety network solutions.
- 5Environmentally friendly with Green Premium certification and recyclable packaging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Preventa Safety automation | accessory / separate part type | Connecting cable |
accessory / separate part category | Cabling accessory | Accessory / separate part destination | RS485 safe communication expansion module |
Product Compatibility | XPSMCMCO0000S... | Cable length | 164.04 ft (50 m) |
Electrical connection | Flying leads | AWG Gauge | AWG 24 |

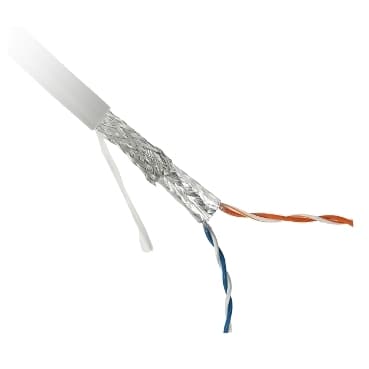

Cable insulation material | PE (polyethylene) | Type of cable | Twisted pair white/blue<br />Twisted pair orange/white |
Cable shielding type | S/FTP | [Ue] rated operational voltage | 300 Vrms |
Permissible current | 2.1 A | Cable capacitance | 0.2096 nF between two conductors)<br />0.3772 nF between conductor and shield) |
Attenuation | 1.97 dB | Nominal velocity propagation | 66 % |
Delay skew | 1.54 ns | Insulation resistance | 24 MOhm nominal conductor DC resistance<br />2.2 MOhm nominal outer shield DC resistance |
Net Weight | 10.1 lb(US) (4.6 kg) | Ambient Air Temperature for Operation | -4…176 °F (-20…80 °C) |
Specifications may be subject to change without notice
