Product Model

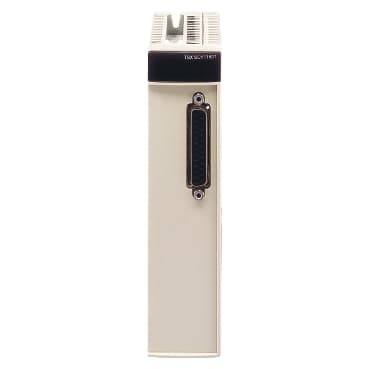

TSXSCY11601C
Selling Points
- 1The TSXSCY11601C is a compact PCMCIA communication module designed for easy integration into various industrial systems.
- 2It supports MODBUS RS 485 protocol, ensuring seamless communication with a wide range of industrial devices.
- 3The module is coated with protective lacquer, providing robust protection against environmental factors.
- 4It can support up to 32 devices, making it ideal for complex industrial automation setups.
- 5Manufactured by Schneider Electric, known for its high-quality industrial automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Communication module |
Software Designation | Unity Pro | Structure type | Heterogeneous industrial bus |
Product Compatibility | Premium<br />Atrium | Method of access | Master/slave type |
Integrated connection type | 1 serial link 1 SUB-D 25 | communication port protocol | Modbus |
Communication port support | RS485 isolated | Mode of Transmission | Asynchronous in baseband |
Transmission frame | Uni-Telway<br />Character mode<br />RTU/ASCII | Transmission Rate | 1.2...19.2 kbit/s |
Transmission support medium | 2 twisted shielded pairs cable | Number of devices | 32 |
Number of addresses | 0…247 | Bus length | 0.0000000000…4265.09 ft (0…1300 m) character mode<br />0.0000000000…4265.09 ft (0…1300 m) Modbus<br />0.0000000000…4265.09 ft (0…1300 m) Uni-Telway |
Maximum tap links length | 49.2 ft (15 m) | Requests | 1920 bits per request<br />120 words per request |
Control parameter | One CRC 16 on each frame | Monitoring function | Event counters<br />Diagnostic counters |
Modbus funtions available | Event connection Modbus master 0C<br />Event connection Modbus slave 0C<br />Event counter Modbus master 0B<br />Event counter Modbus slave 0B<br />Identification Modbus slave 11<br />Slave identification Modbus master 11<br />Write n output bits Modbus slave 0F<br />Write n output words Modbus slave 10<br />Diagnostic Modbus master 08<br />Diagnostic Modbus slave 08<br />Exceptional read status Modbus master 07<br />Exceptional read status Modbus slave 07<br />Read bits Modbus master 01<br />Read input bits Modbus master 02<br />Read input bits Modbus slave 02<br />Read input words Modbus master 04<br />Read n input words Modbus slave 04<br />Read n output bits Modbus slave 01<br />Read n output words Modbus slave 03<br />Read words Modbus master 03<br />Write 1 bits or n bits Modbus master 05<br />Write 1 input word Modbus slave 06<br />Write 1 output bit Modbus slave 05<br />Write 1 word or n word Modbus master 06 | Local signalling | for communication (CH0) 1 LED<br /> for internal fault, module failure (ERR) 1 LED<br /> for module operating (RUN) 1 LED |
Current consumption | 350 mA 5 V DC | Module format | Standard |
Net Weight | 0.75 lb(US) (0.34 kg) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
