Product Model

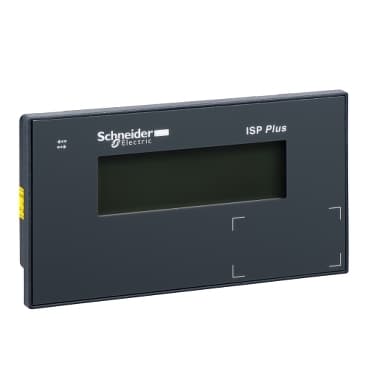

TSXXBTN410
Selling Points
- 1Advanced control and communication capabilities for optimized industrial equipment performance.
- 2Rugged construction to withstand the toughest operating environments.
- 3High-speed processing and real-time data acquisition for precise control.
- 4Modular design with flexible programming options, including ladder logic and structured text.
- 5Distributed control architecture support for complex control strategies and improved system scalability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Weight indicator |
Display Type | Backlit LCD | Display colour | Green |
Messages display capacity | 1 line of 5 characters (17.36 x 11.8 mm) minimum<br />4 lines of 20 characters (4.34 x 2.95 mm) maximum<br />2 lines of 10 characters (8.38 x 5.9 mm) for weighing applications | [Us] rated supply voltage | 24 V DC non isolated |
Supply | External source | Supply voltage limits | 18…30 V |
Residual ripple | 1200 mV | Power Consumption in W | 5 W |
Number of key | 8 | marking | CE |
Height | 2.9 in (74 mm) | Width | 5.2 in (132 mm) |
Depth | 4.09 in (104 mm) | Net Weight | 0.84 lb(US) (0.38 kg) |
Standards | EN/IEC 61131-2<br />CSA C22.2 No 14<br />EN/IEC 60068-2<br />UL 508 | Product Certifications | ATEX zone 2/22<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
IP degree of protection | IP20 EN/IEC 60529 rear panel)<br />IP65 EN/IEC 60529 | NEMA degree of protection | NEMA 4X front panel outdoor use) |
Specifications may be subject to change without notice
