Product Model
XB4BA711137
Selling Points
- 1Built with chromium-plated metal bezel and silver alloy (Ag/Ni) contacts for durability.
- 2Spring return green flush unmarked operator with Zamak fixing collar for straightforward setup.
- 3Suitable for a variety of industrial applications, including control panels and machinery.
- 4Slow-break standard silver alloy contacts ensure smooth and reliable operation.
- 5Constructed with high-quality materials to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

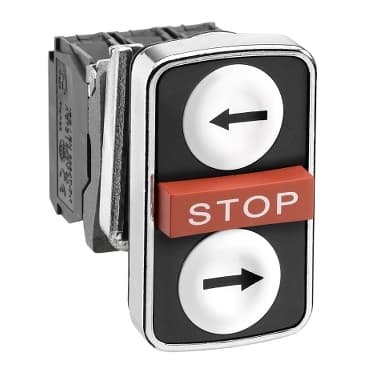

Range of Product | Harmony XB4 | Product or Component Type | Triple-headed push-button |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Red projecting, STOP white)<br />White flush, left arrow black)<br />White flush, right arrow black) |
Operators description | White ''right arrow'' - white ''left arrow'' - red ''STOP'' | Contacts type and composition | 1 NO + 1 NC |
Contact operation | Slow-break | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1<br />Spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Net Weight | 0.282 lb(US) (0.128 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Colour of marking | White marking when green, red or black caps<br />Black marking when white caps | Contacts usage | Standard contacts |
Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 3.5 N NC changing electrical state<br />3.8 N NO changing electrical state | Mechanical durability | 1000000 cycles |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
Device presentation | Complete product | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP69K IEC 60529<br />IP69 IEC 60529 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />DNV<br />UL Listed<br />GL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
