Product Model

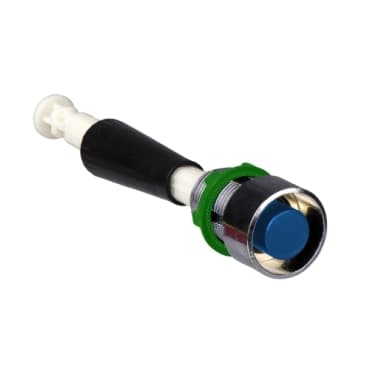

XB4BA961
Selling Points
- 1High-performance electrical distribution solution.
- 2Compact design for space-efficient installations.
- 3Durable construction with long-lasting components.
- 4Easy integration with existing electrical systems.
- 5Enhanced safety features for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Manual overload reset push-button |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Operator profile | Blue flush, unmarked |
Activating distance | 1.2…5.1 in (30…130 mm) | Net Weight | 0.128 lb(US) (0.058 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Shape of signaling unit head | Round |
Operating travel | 0.6 in (14 mm) | Mechanical durability | 5000000 cycles |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK03 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1 |
Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
Specifications may be subject to change without notice
