XB4BPS42GEX

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

34906

In Stock
Last updated: 2025/4/19
View Specifications
schneider XB4BPS42GEX

Selling Points

  • 1High-efficiency design for reduced energy consumption.
  • 2Compact and lightweight for easy integration.
  • 3Wide range of input voltage for flexibility.
  • 4Built-in protection features for enhanced reliability.
  • 5Meets international safety standards for global use.
Product Details

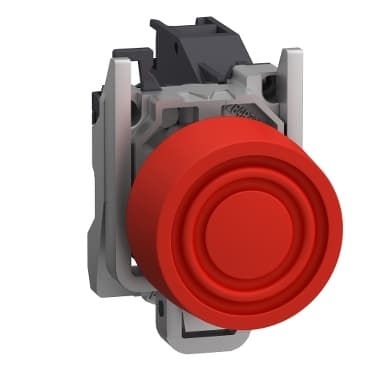

XB4BPS42GEX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete push-button
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Dust zone
Zone 21 - 22
Gas zone
Zone 1 - 2
Type of operator
spring return
Operator profile
Red projecting
Operator additional information
Booted (coloured silicon)
Contacts type and composition
1 NC
Width
1.8 in (46.2 mm)
Height
1.2 in (30 mm)
Depth
2.8 in (72 mm)
Net Weight
0.179 lb(US) (0.081 kg)
Device mounting
Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1
Fixing center
>= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm)
Embedding Depth
2.3 in (58 mm)
marking
Ex tb IIIC Db<br />Ex db eb IIC Gb<br />II 2 GD
Shape of signaling unit head
Round
Contact operation
Slow-break
Positive opening
With
Operating travel
0.066 in (1.688 mm) engagement point)<br />0.129 in (3.271 mm) changing state point)<br />0.174 in (4.424 mm) total travel)
Operating force
2.873 N
Mechanical durability
5000000 cycles
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A 380 V, AC, A600 IEC 60947-5-1<br />3 A 240 V, AC, A600 IEC 60947-5-1<br />6 A 120 V, AC, A600 IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 IEC 60947-5-1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-4…167 °F (-20…75 °C)
IP degree of protection
IP66 IEC 60529
Standards
IEC 60079-0:2009<br />EN/IEC 60079-1:2009<br />IEC 60079-7:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-1<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213
Product Certifications
INERIS 04ATEX9004U

Specifications may be subject to change without notice
