Product Model

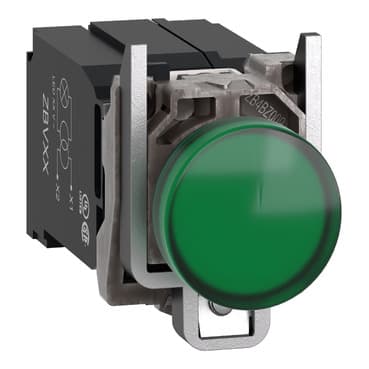

XB4BV5B3
Selling Points
- 1High-quality electrical components for reliable performance.
- 2Compact design for space-saving installations.
- 3Advanced safety features to prevent electrical hazards.
- 4Easy installation with user-friendly interface.
- 5Durable construction for long-lasting service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Pilot light |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Green |
Operator additional information | With plain lens | Light source | Universal LED |
Bulb base | Integral LED | Light block supply | Via transformer 1.2 VA 24 V |
Light source colour | Green | [Us] rated supply voltage | 400 V AC 50 Hz |
CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.9 in (47 mm) |
CAD overall depth | 3.5 in (90 mm) | Net Weight | 0.379 lb(US) (0.172 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | Signalling type | Steady |
Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
Device presentation | Complete product | Supply voltage limits | 407…423 V AC |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 |
Product Certifications | CSA<br />UL Listed | Vibration resistance | 2 gn 12…500 Hz)IEC 60068-2-6 |
Shock resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
