Product Model

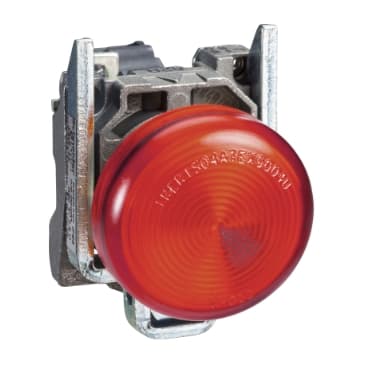

XB4BV64
Selling Points
- 1Advanced circuitry for enhanced reliability and reduced downtime.
- 2Compact design for easy installation in tight spaces.
- 3High current capacity up to 64A for heavy-duty use.
- 4Integrated overload protection for safe operation.
- 5Durable construction with high-quality components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Pilot light |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Red |
Operator additional information | With plain lens | Light source | Bulb not included |
Bulb base | BA 9s | Light block supply | Direct <2.4 W |
[Us] rated supply voltage | <= 250 V | Height | 1.9 in (47 mm) |
Width | 1.2 in (30 mm) | Depth | 2.2 in (55 mm) |
Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.165 lb(US) (0.075 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
[Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
Signalling type | Steady | Device presentation | Complete product |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA | Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
