Product Model
XB4FK135B5
Selling Points
- 1High-performance power supply designed for critical applications.
- 2Reliable and efficient operation with minimal downtime.
- 3Compact and lightweight design for easy installation.
- 4Meets or exceeds industry standards for safety and quality.
- 5Compatible with a wide range of electrical systems and devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

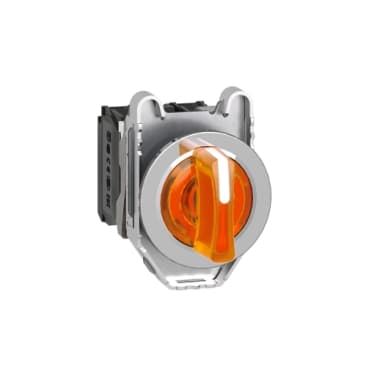

Range of Product | Harmony XB4 | Product or Component Type | Illuminated selector switch |
Device short name | XB4F | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | stay put |
Operator profile | Orange standard handle | Operator position information | 3 positions +/- 45° |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Light source | Universal LED |
Bulb base | Integral LED | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
Height | 2.09 in (53 mm) | Width | 1.4 in (36.6 mm) |
Depth | 2.7 in (69.5 mm) | Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC |
Net Weight | 0.333 lb(US) (0.151 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Device mounting | Built-in 1.21 in (30.75 mm) +/- 0.25 mm | Fixing mode | By screws 7.08 lbf.in (0.8 N.m) 0.8...1.2 Nm) |
Contacts usage | Standard contacts | Positive opening | With NC contact IEC 60947-5-1 appendix K |
Operating torque | 1.24 lbf.in (0.14 N.m) NO changing electrical state | Mechanical durability | 500000 cycles |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
Signalling type | Steady | Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC |
current consumption | 18 mA | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Device presentation | Complete product |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E | IK degree of protection | IK04 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
