Product Model

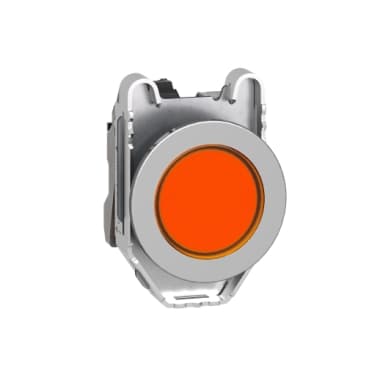

XB4FVB5
Selling Points
- 1Advanced Power Distribution: The Schneider XB4FVB5 offers robust power distribution capabilities, ensuring reliable energy supply to critical systems.
- 2High Efficiency: Equipped with advanced circuitry, this unit minimizes energy loss and maximizes system performance.
- 3Compact Design: Its compact footprint makes it ideal for space-constrained industrial environments.
- 4Enhanced Safety Features: Integrated safety mechanisms protect against overloads, short circuits, and other potential hazards.
- 5Easy Installation: Designed with user-friendly installation in mind, reducing setup time and minimizing downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Pilot light |
Device short name | XB4F | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Head type | Built-in-flush |
Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Orange |
Operator additional information | With plain lens | Light source | Universal LED |
Bulb base | Integral LED | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
CAD overall width | 1.4 in (36.6 mm) | CAD overall height | 1.4 in (36.6 mm) |
CAD overall depth | 2.1 in (53.6 mm) | Net Weight | 0.247 lb(US) (0.112 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Device mounting | Fixing hole 1.21 in (30.75 mm) +/- 0.25 mm |
Fixing mode | By screw | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | Signalling type | Steady |
current consumption | 18 mA | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Device presentation | Complete product |
Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50 E<br />Type 12 UL 50 E<br />Type 4 UL 50 E<br />Type 4X UL 50 E |
IK degree of protection | IK06 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CE<br />JIS C8201-1 |
Product Certifications | UL Listed<br />CSA<br />CCC<br />EAC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
