Product Model

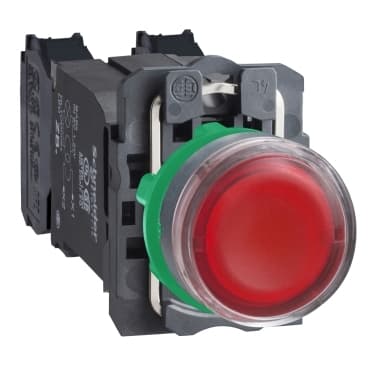

XB5AW3435
Selling Points
- 1High-quality, durable construction for long-lasting performance.
- 2Advanced safety features to prevent electrical accidents.
- 3Compact design for easy installation in various environments.
- 4Reliable operation under heavy loads and harsh conditions.
- 5Compliant with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Illuminated push-button |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red flush, unmarked | Operator additional information | With plain lens |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | Light source | Incandescent |
Bulb base | BA 9s | Light block supply | Via integral transformer 1.2 VA 6 V |
[Us] rated supply voltage | 110...120 V AC 50/60 Hz | cap/operator or lens colour | Red |
Height | 1.7 in (42 mm) | Width | 1.2 in (30 mm) |
Depth | 4.0 in (101 mm) | Terminals description ISO n°1 | (21-22)NC<br />(13-14)NO |
Net Weight | 0.282 lb(US) (0.128 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Contacts usage | Standard contacts | Positive opening | With IEC 60947-5-1 appendix K |
Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 3.5 N NC changing electrical state<br />3.8 N |
Mechanical durability | 10000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 | Signalling type | Steady |
Device presentation | Complete product | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K<br />IP67 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | IEC 60947-5-4<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />UL Listed<br />DNV<br />GL<br />BV<br />CSA |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
