Product Model
XBKH81000033E
Selling Points

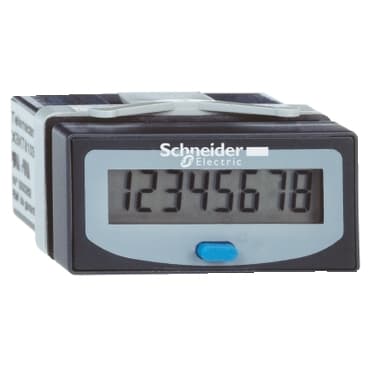

- 1Accurate Timekeeping: The XBKH81000033E hour counter ensures precise timekeeping with its LCD 8-digit display.
- 2Internal Li Battery: Equipped with an internal Li battery for reliable operation without external power sources.
- 3Mercury-Free: Compliant with environmental regulations, making it a mercury-free product.
- 4Sustainable Design: Part of Schneider Electric's Green Premium commitment, promising best-in-class environmental performance.
- 5Versatile Usage: Perfect for counting the duration of ovens and other applications requiring precise timing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Zelio Count | Product or Component Type | Hour counter |
Display Type | LCD | Size | 24 x 48 mm |
Display digits | 8 | Reset | Manual<br />Transistor |
Battery Type | Lithium | Technology Type | Electronic |
Backup Time | 7 years | Counting mode | Adding 1/100 of an hour |
Time range | 0...999 999.99 h | input function | Enable |
Input type | Transistor NPN <= 0.7 V DC<br />Transistor PNP >= 5 V DC<br />Volt-free contact | Input voltage | <= +/- 40 V DC |
Mounting Mode | Flush-mounted | Mounting Support | Panel mounting |
Fixing Mode | By self-locking clamp | Connections - terminals | Screw terminal block |
Supply | Battery | Net Weight | 0.11 lb(US) (0.05 kg) |
Character size | 0.3 in (7 mm) | CAD overall width | 1.9 in (48 mm) |
CAD overall height | 0.9 in (24 mm) | CAD overall depth | 1.6 in (40 mm) |
Standards | EN/IEC 50081-2<br />EN 61010<br />EN/IEC 50082-2 | IP degree of protection | IP54EN/IEC 60529 |
Ambient Air Temperature for Operation | 14…122 °F (-10…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Vibration resistance | 1 gn 10…150 Hz)EN/IEC 60068-2-6 | Shock resistance | 10 gn 18 ms EN/IEC 60068-2-27 |
Electrical shock protection class | Class II EN/IEC 60536 |
Specifications may be subject to change without notice
